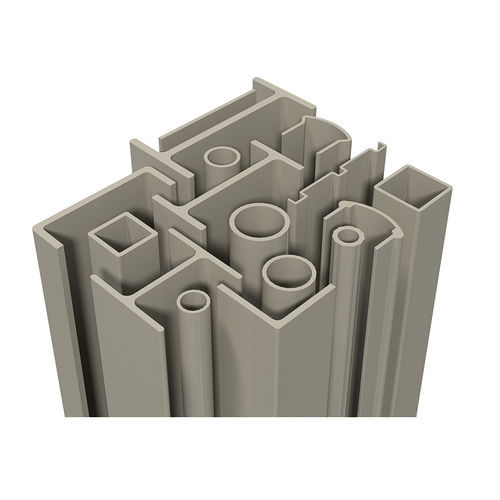

Construction site framing profile

Product overview
MEISER GRP construction profiles are pultruded structural sections designed as an alternative to steel, aluminium, wood or concrete for load-bearing and access structures. Standard matrix: unsaturated polyester. Surface finish: thermoplastic veil. Standard colour: grey similar to RAL 7032. All profiles manufactured to EN 13706.

Applications

• Staircases, platforms, gangways and ladders
• Substructures for signal platforms, catwalks and steps in structural engineering

Materials and construction
Pultruded profiles with longitudinal glass-fibre rovings and transverse reinforcing mats embedded in an unsaturated polyester matrix. Surface veil provides a uniform finish and improved handling. Pultrusion ensures consistent fibre orientation and dimensional stability.

Certifications and approvals
Manufactured under ISO 9001:2015 quality management and tested by independent institutes. MEISER holds EBA approval for standard GRP construction profiles according to TM 2010-354 I.NVT 4, permitting use in Deutsche Bahn AG structural applications where specified.

Technical data
Technical data sheet available (gfk-tech-data-en-construction-profiles.pdf). Key properties:

Characteristics / Technical specifications

• Tensile strength (axial): 240 MPa; transversal: 70–120 MPa
• Tensile modulus (axial): 26,000 MPa; transversal: 8,000 MPa
• Flexural strength (axial): 260 MPa; transversal: 100–120 MPa
• Flexural modulus (axial): 24,000 MPa; transversal: 9,000 MPa
• Compressive strength (axial): 250 MPa; transversal: 80–90 MPa
• Compressive modulus (axial): 20,000 MPa; transversal: 4,500 MPa
• Impact strength: 180 kJ/m²
• Interlaminar shear strength: 70 MPa
• Density: 1.85 g/cm³
• Glass content: 60 wt.%
• Barcol hardness: >35°
• Volume resistivity: 10^10 – 10^15 Ohm/cm
• Surface resistivity: 10^12 Ohm
• Dielectric strength: 5 kV/mm
• Dielectric coefficient: >5
• Coefficient of thermal expansion: 12×10^-6 mm/mmK
• Thermal conductivity: 0.35 W/mK
• Specific heat capacity: 1.1 kJ/kgK
• Continuous use temperature: -60 to +150 °C
• Water absorption: 0.15 %
• Dimensional stability (Martens): 200 °C
