Steel step

sheet metalnon-sliphigh-resistance

Product information

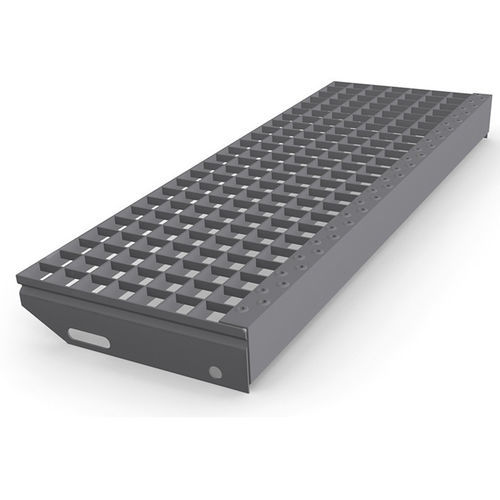

Stair treads are fitted at the front edge with a perforated, specially shaped angle section (safety nosing) welded to the endplate and the load-bearing bar. The nosing increases slip resistance and reinforces the tread. Options include non-slip steel flooring (chequer plate) or checker plate variants. Production can be adapted to customer-specific requirements and to deviating foreign standards.

Compliance and accessibility
For publicly accessible staircases, a maximum free gap of 120 mm between treads is increasingly required. A 70 mm-high nosing is used to meet this specification and complies with ÖNORM B 5371, which for rises up to 190 mm permits a maximum step-through height of 120 mm.

Characteristics / Technical specifications

• Purpose: increased slip resistance and improved load-bearing capacity
• Front edge: 70 mm-high perforated angle safety nosing
• Fixing: nosing welded to endplate and load-bearing bar
• Material options: non-slip steel flooring (chequer plate) or checker plate
• Compliance: ÖNORM B 5371 (for rises up to 190 mm, max step-through 120 mm)
• Customisation: available to customer-specific requirements and to comply with foreign standards
