Steel grating

for drain channelshigh-resistance

Product information

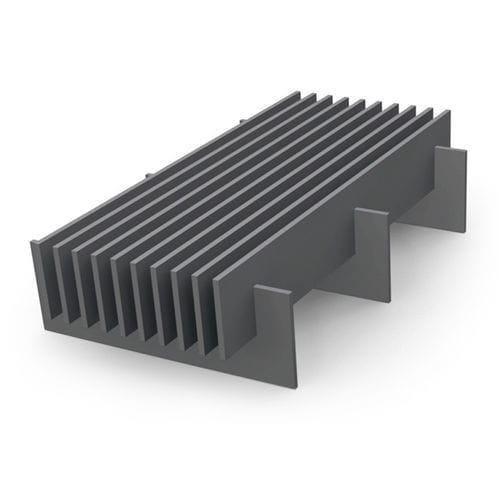

MEISER comb grating is a press-locked grating where the cross bars protrude above the top surface of the bearing bars. The visual emphasis on the cross bars gives the panel a comb-like, elegant appearance and reduces the visual presence of bearing bars. Bearing bar spacing and number can be adapted to static requirements; several cross-bar spacing variants are available.

Applications
The primary applications are architectural and interior coverings where appearance is important: air-conditioning grilles, heating duct covers, high-quality channel grates, façade cladding to emphasize horizontal or vertical lines, and sun-shade elements. The product is suitable for both interior decorative uses and functional exterior cladding depending on material and finish selection.

Technical data
Common mesh spacing
Bearing bar → cross-bar options: 21,00 mm | 11,1 / 16,7 / 22,2 / 33,3 mm; 22,20 mm | 11,1 / 16,7 / 22,2 / 33,3 mm; 33,30 mm | 11,1 / 16,7 / 22,2 / 33,3 mm; 66,60 mm | 11,1 / 16,7 / 22,2 / 33,3 mm; 99,90 mm | 11,1 / 16,7 / 22,2 / 33,3 mm.

Standard bearing bar profiles
Examples (bearing bar thickness): 30/2, 35/2, 40/2, 45/2, 50/2 (2 mm) and 30/3, 35/3, 40/3, 45/3, 50/3 (3 mm).

Accessories / Fixing clips

• Welded-in holed fixing plates: Welded perforated plates produced to customer specification; fixing screws by customer.
• Hilti clamp: Saddle-top clip combined with lower part; high vibration resistance and single-person installation.
• Clamp B: Saddle top clip, clamp lower part, M8x60 hexagon screws and M8 square nut.
• Clamp B 10: Stirrup top clip, hexagon socket screw, clip lower part and nut.

References / Example applications
Installations include shopping centre coverings, opera houses, museums, pedestrian zones and art museums (examples: Liezen, Vichy, Munich, Kaufbeuren, Moritzburg).

Characteristics / Technical specifications

• Type: Press-locked comb grating with cross bars protruding above bearing bars.
• Appearance: Comb-like aesthetic with emphasis on cross bars; bearing bars visually reduced.
• Main uses: Interior coverings (HVAC grilles, heating pits), high-quality channel grates, façade cladding, sun-shade elements.
• Materials & surfaces: Available in various materials and surface treatments; special cross-bar profiles possible for specific visual effects.
• Adjustability: Bearing bar spacing and number adaptable to load requirements; multiple cross-bar spacing options.
• Common mesh spacings and standard profiles as listed above.
