Steel grating LOCKED

for walkwaysfor facadesfor industrial flooring

Product information
The press-locked grating is the most widely used grating type in many European countries. Its production method—pressing cross bars into punched bearing bars—allows wide flexibility in mesh size, bearing bar height and thickness, and choice of materials to meet specific industrial requirements. Applications include walkways, platforms, ramps, architectural facades and industrial installations where tailored load capacity and mesh geometry are required.

Manufacture & design

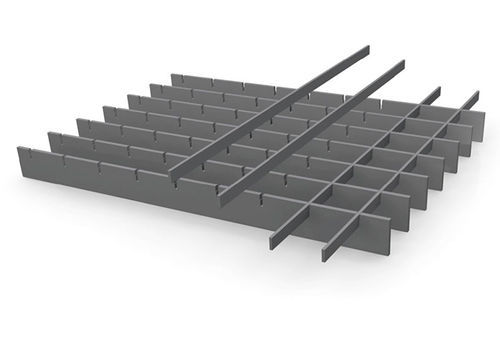

Cross bars, typically cold-rolled flat steel, are pressed into pre-punched bearing bars. Edge banding is supplied as T-profile or flat section and attached by automatic resistance welding. Anti-slip versions are available by notching the upper surface of bearing and/or cross bars. Opposite end meshes are usually equal; mesh pattern, height and thickness are configurable to project needs.

Technical data — Common mesh spacing for bearing bars 2 to 3 mm
Bearing bar 11,1: cross bars 11,1; 16,65; -; 22,2; 33,3; 44,4; 49,95; 66,6; 99,9
Bearing bar 21: cross bars 11,1; 16,65; 21,0; 22,2; 33,3; 44,4; 49,95; 66,6; 99,9
Bearing bar 22,2: cross bars 11,1; 16,65; 21,0; 22,2; 33,3; 44,4; 49,95; 66,6; 99,9
Bearing bar 33,3: cross bars 11,1; 16,65; 21,0; 22,2; 33,3; 44,4; 49,95; 66,6; 99,9
Bearing bar 44,4: cross bars 11,1; 16,65; 21,0; 22,2; 33,3; 44,4; 49,95; 66,6; 99,9
Bearing bar 55,5: cross bars 11,1; 16,65; 21,0; 22,2; 33,3; 44,4; 49,95; 66,6; 99,9
Bearing bar 66,6: cross bars 11,1; 16,65; 21,0; 22,2; 33,3; 44,4; 49,95; 66,6; 99,9
Bearing bar 99,9: cross bars 11,1; 16,65; 21,0; 22,2; 33,3; 44,4; 49,95; 66,6; 99,9

Technical data — Common mesh spacing for bearing bars 4 to 5 mm
Bearing bar 21: cross bars 16,65; 22,2; 33,3; 44,4; 49,95; 66,6; 99,9
Bearing bar 25: cross bars 16,65; 22,2; 33,3; 44,4; 49,95; 66,6; 99,9
Bearing bar 33,3: cross bars 16,65; 22,2; 33,3; 44,4; 49,95; 66,6; 99,9
Bearing bar 50: cross bars 16,65; 22,2; 33,3; 44,4; 49,95; 66,6; 99,9
Bearing bar 66,6: cross bars 16,65; 22,2; 33,3; 44,4; 49,95; 66,6; 99,9
Bearing bar 99,9: cross bars 16,65; 22,2; 33,3; 44,4; 49,95; 66,6; 99,9

Standard bearing bar profiles
Bearing bar 2 mm: 20/2; 25/2; 30/2; 35/2; 40/2; 45/2; 50/2
Bearing bar 3 mm: 20/3; 25/3; 30/3; 35/3; 40/3; 45/3; 50/3; 60/3; 70/3; 80/3; 90/3; 100/3
Bearing bar 4 mm: 25/4; 30/4; 35/4; 40/4; 45/4; 50/4; 60/4; 70/4; 80/4; 90/4; 100/4
Bearing bar 5 mm: 25/5; 30/5; 35/5; 40/5; 45/5; 50/5; 60/5; 70/5; 80/5; 90/5; 100/5; 110/5; 120/5; 130/5; 140/5; 150/5; 160/5; 170/5

Accessories / Fixing clips

• Welded-in holed fixing plates: perforated plates welded to the frame; hole size per client specification; fasteners provided by client.
• Double clamp B: 2 saddle-top clips, clamp lower part, 2 hexagon screws and 2 square nuts.
• Heald-bolt fastener: head bolts with retaining flange; variants for highly corrosive environments (e.g. offshore) available.
• Butt joint connector: comprising top and base with thread and Allen screw.
• Hilti clamp: saddle top clip and lower part joined; high vibration resistance and fast single-person installation.
• Clamp B, Clamp B10, Clamp S, Safety clamps A & D: various versions for different fixation and safety requirements.

Technical specifications / features

• Type: press-locked grating (cross bars pressed into punched bearing bars).
• Bearing bars: punched; standard profiles available 20/2 to 170/5 (see list).
• Cross bars: typically cold-rolled flat steel; multiple cross-bar spacings available.
• Banding: T-profile or flat section fixed by resistance welding.
• Options: anti-slip notched top faces, material and surface treatments per application.
• Customisation: mesh size, end-mesh configuration, height and thickness tailored to project needs.
• Accessories: wide range of fixing clips and fasteners for assembly and safety.
