Aluminum grating LOUVRE

stainless steelsteelfor walkways

Product information
When reduced transparency is required, louvre grating provides a controlled visual and solar screening solution. Typical applications include bridge and walkway flooring, sun shading, cladding elements, ventilation grilles, facades and suspended ceilings. MEISER supplies these gratings for both architectural and industrial uses.

Materials and variants

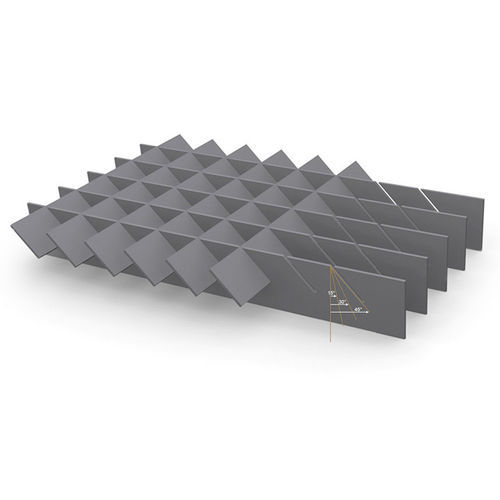

MEISER offers louvre grating in steel, aluminium and high-grade stainless steel. Cross-bars are pressed in at angles of 15°, 30° or 45° to achieve different degrees of transparency. Maximum cross-bar length available for this product is 1,500 mm. Note: a 15° cross-bar inclination is technically possible only with a bearing bar thickness of 3 mm.

Technical data
Common mesh spacing
Bearing bar — Cross-bar spacing combinations:
33.3 — 22.2 / 33.3 / 66.6
66.6 — 22.2 / 33.3 / 66.6
99.9 — 22.2 / 33.3 / 66.6

Standard bearing bar profiles
Bearing bar 2 mm | Bearing bar 3 mm
30/2 | 30/3
35/2 | 35/3
40/2 | 40/3
45/2 | 45/3
50/2 | 50/3
- | 60/3
- | 70/3
- | 80/3
- | 90/3
- | 100/3

Accessories / Fixing clips

• Welded-in holed fixing plates: Consisting of welded-in holed plate; hole size and position according to customer specifications; fixing screws provided by the customer.
• Clamp B: Consisting of saddle-top clip, clamp lower part, M8x60 hexagon screws and M8 square nut.

Characteristics / technical specifications

• Materials: steel, aluminium, high-grade stainless steel.
• Cross-bar inclination angles available: 15°, 30°, 45° (15° technically only with 3 mm bearing bar thickness).
• Maximum cross-bar length: 1,500 mm.
• Common mesh spacing (mm): combinations as listed above.
• Standard bearing bar profiles (mm): 30/2, 35/2, 40/2, 45/2, 50/2 and 30/3, 35/3, 40/3, 45/3, 50/3, 60/3, 70/3, 80/3, 90/3, 100/3.
• Typical uses: bridge and walkway flooring, sunshades, cladding, ventilation grilles, facades, suspended ceilings.
