Steel grating

for stair treadsfor industrial flooringfor exterior flooring

Product information

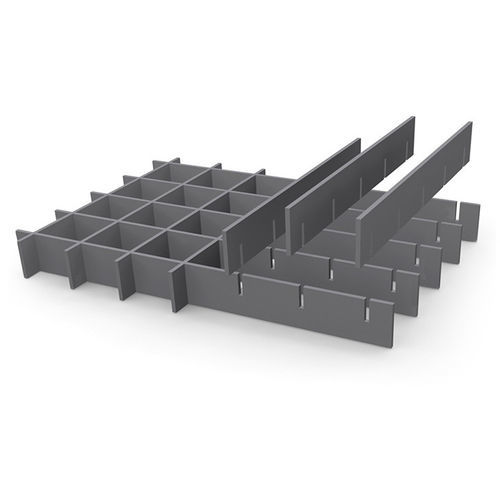

Full grating bears this name because the bearing and cross bars have the same cross-section and are therefore of equal height. A bearing bar is one whose ends are both supported and whose underside is not slotted. Compared with standard press-locked grating, full grating provides improved screening and an attractive design.

Technical data
Common mesh spacing for bearing bars from 2 to 3 mm
Bearing bar | Cross bar (columns)
22,2 | 16,65 | 22,2 | - | 44,4 | 66,6
33,3 | 16,65 | 22,2 | 33,3 | - | 66,6
44,4 | 16,65 | 22,2 | - | 44,4 | -
66,6 | 16,65 | 22,2 | 33,3 | - | 66,6

Common mesh spacing for bearing bars from 5 mm
Bearing bar | Cross bar (columns)
33,3 | 16,65 | 33,3 | 66,6 | 99,9
66,6 | 16,65 | 33,3 | 66,6 | -
99,9 | 16,65 | 33,3 | - | 99,9

Standard bearing bar profiles
Bearing bar 2 mm | Bearing bar 3 mm | Bearing bar 5 mm
25/2 | 25/3 | -
30/2 | 30/3 | 30/5
35/2 | 35/3 | 35/5
40/2 | 40/3 | 40/5
45/2 | 45/3 | 45/5
50/2 | 50/3 | 50/5
- | 60/3 | 60/5
- | 70/3 | 70/5
- | 80/3 | -
- | 90/3 | -
- | 100/3 | -

Accessories / Fixing clips

• Welded-in holed fixing plates: Consisting of welded-in holed plate; hole size according to customer specifications; fastening screws provided by the customer.
• Grating heald bolt fastener: Consisting of head bolts and retaining flange; for highly corrosive environments (e.g. offshore) also available as X-BT; pre-mounted version X-GR RU.
• Hilti clamp: Consisting of saddle top clip and lower part connected to one another; high resistance to vibrations, can be installed by one person and significantly shortens installation times.
• Clamp B: Consisting of saddle top clip, clamp lower part, M8x60 hexagon screws and M8 square nut.
• Safety clamp A: Consisting of safety upper part, clamp lower part, hexagon screw and square nut.
• Safety clamp D: Consisting of safety upper part, clamp lower part, hexagon screw and square nut.

References

• Arvato – Logistics centre, Dorsten
• Zoo, Dresden
• Qatar Museum, Doha
• OneOnOne House, Luxembourg
• Sports hall, Munich
• Marie-Curie School, Riedberg
• Archaeological showcase, Aachen
• Eccentric House, Bochum
• Zollverein World Heritage Site
• Steelworks Bremen – administration building
• College Eching
• Van Volxem Winery, Wiltingen
• National Library, Luxembourg
• Museum Burg Heinfels, Austria

Characteristics / technical specifications

• Type: Full grating (bearing and cross bars with same cross-section and equal height).
• Bearing bar: supported at both ends; underside not slotted.
• Improved screening and attractive design compared to standard press-locked grating.
• Available common mesh spacings: combinations for bearing bars (22.2, 33.3, 44.4, 66.6, 99.9 mm) and cross bars (16.65, 22.2, 33.3, 44.4, 66.6, 99.9 mm) as shown above.
• Standard bearing bar profiles available for 2 mm, 3 mm and 5 mm thicknesses (e.g., 25/2 to 100/3).
• Multiple fixing options: welded-in plates, heald bolt fasteners, Hilti clamp, Clamp B, Safety clamp A and D.
