Stainless steel grating DUTY

for walkwaysfor industrial flooringfor exterior flooring

Product information

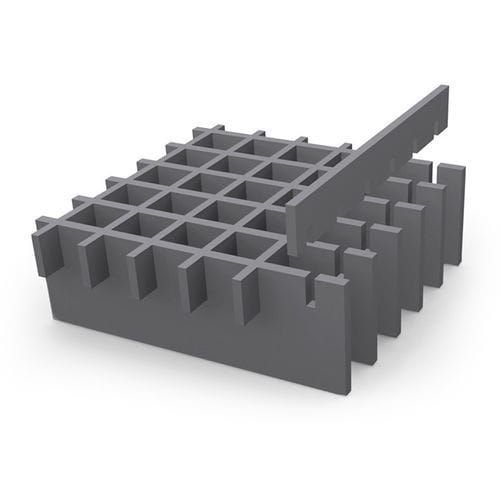

From the name you can infer the intended application of the MEISER heavy-duty grating. This is a press-locked grating with particularly deep and/or thick bearing bars. The dimensions of the cross bars are adapted accordingly. A counter gear tooth engagement during the pressing process gives the MEISER heavy-duty grating additional stability, so that surface loads of more than 50 tonnes and wheel loads of up to 10 tonnes can be withstood depending on configuration. We adapt the exact design case by case to the span (width between supports) and the intended use. Production in stainless/high-grade steel is possible.

Technical data
Common mesh spacing
Bearing bar | Cross bar 50 | Cross bar 75 | Cross bar 100
25 | 50 | 75 | 100
50 | 50 | 75 | 100
75 | 50 | 75 | 100
100 | 50 | 75 | 100

Standard bearing bar profiles
Bearing bar 8 mm | Bearing bar 10 mm | Bearing bar 12 mm
80/8 | 80/10 | -
90/8 | 90/10 | -
100/8 | 100/10 | 100/12
110/8 | 110/10 | 110/12
120/8 | 120/10 | 120/12
130/8 | 130/10 | 130/12
140/8 | 140/10 | 140/12
150/8 | 150/10 | 150/12
- | - | 160/12
- | - | 170/12
- | - | 180/12
- | - | 190/12
- | - | 200/12

Accessories / Fixing clips

• Welded-in holed fixing plates — Consisting of welded-in holed plate. Hole size and position are according to customer's specification; screws are provided by the customer.

References / Typical applications

• Bridge Ilanz, Switzerland
• Car ship on the river Rhine
• Waldschlösschen Bridge, Dresden

Characteristics / technical specifications

• Product type: press-locked heavy-duty grating
• Bearing bars: particularly deep and/or thick profiles (see standard bearing bar profiles table)
• Cross bars: dimensions adapted to bearing bars and application
• Mesh spacing options: combinations shown in the Common mesh spacing table
• Increased stability via counter gear tooth engagement in pressing process
• Load capacity: surface loads > 50 tonnes; wheel loads up to 10 tonnes (depending on configuration)
• Design: adapted case-by-case to span (width between supports) and intended use
• Materials: production possible in steel or high-grade/stainless steel
• Available accessories: welded-in holed fixing plates (hole sizes and positions per customer; screws supplied by customer)
• Documented references include bridges and ship decks demonstrating heavy-duty applications
