Fire protection glass panel PLANILAQUE® COLOR-IT

fire-ratedopaquecolored

Overview
PLANILAQUE® COLOR-IT lacquered glass combines the purity of colors with the depth of glass. It is intended for interior decoration: furniture, doors and partitions, wall claddings. The collection is built around five current trends and comprises 26 colors redesigned to facilitate selection and inspire contemporary designs.

Collection and shades
The PLANILAQUE® COLOR-IT range consists of 26 colors grouped into warm neutrals, cool neutrals, nature tones, lounge and pastel shades. Three shades are produced on DIAMANT® base glass:

• DL 120 Satin White
• DL 210 Alpine White
• DL 224 Ecru

Appearance and manufacturing
PLANILAQUE® COLOR-IT is a high-durability lacquered glass range. Its opaque colored appearance is obtained by depositing a high-resistance lacquer layer on the rear face of the glass. The range is mainly produced on PLANICLEAR® base glass, with some shades on DIAMANT®.

Applications

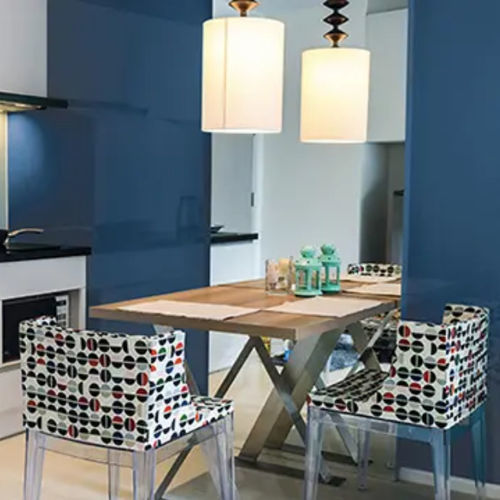

PLANILAQUE® COLOR-IT enhances interior spaces by lacquering walls in residential areas (entrance halls, kitchens, bathrooms, etc.) and in commercial/tertiary sectors (hotels, offices, laboratories, hospitals, etc.). It is also suitable for furniture, cabinet fronts, closet doors, wall claddings and cooker backs (specific versions available).

Advantages
Reflective under light, PLANILAQUE® COLOR-IT offers a palette coordinated with natural materials (wood, metal, stone).

• Contemporary shades: 26 colors adapted to varied ambiances.
• Variety of finishes: a metallic silver shade is available; a satin/matte finish exists under the name PLANILAQUE® COLOR-IT MATE (lacquer applied on matt-etched glass).
• Quality and durability: high resistance; the product can be installed in all interior rooms, including kitchens and bathrooms (except for certain shades subject to restrictions). Compliant with European standard EN 16477 and rated A+ for VOC emissions.
• Custom decoration: possibility of customization by cold screen printing (figurative or abstract patterns) or by incision before lacquering.
• Maintenance: very easy to maintain: clean with a soft, clean cloth and a non-abrasive glass cleaner.
• Safety: reaction-to-fire classification A2-s1-d0. A safety version (PLANILAQUE® COLOR-IT SAFE) is available with a safety film applied to the rear to retain fragments in case of breakage.
• Environment: rated A+ according to French VOC regulations for construction products.

Transformations
Processing is similar to mirror glass: cutting, drilling, edgework, incision, screen printing, sandblasting. For cutting and handling, orient the lacquered face toward the wall/support, flat and free of aggressive materials to protect the lacquer. Apply handling precautions appropriate for lacquered glass.

Examples of thicknesses, dimensions and surface mass
Product data sheets indicate the following formats:

• Standard thicknesses and dimensions (large glass formats): 4 mm: 3,210 x 2,550 mm; 6 mm: 3,210 x 2,400 mm.
• Example ready-to-install format (technical sheet extract): 6 mm: 900 x 700 mm.
• Surface mass: 4 mm ≈ 10 kg/m²; 6 mm ≈ 15 kg/m².
• Other thicknesses and dimensions: not specified on the sheet.

Technical characteristics / specifications

• Fixing: interior use only; mechanical fixing (rebate installation or fixing brackets) or bonding with neutral silicones and/or double-sided adhesive. SAFE VERSION: mechanical fixing also possible.
• Exposure temperature: do not expose the product to temperatures above 50 °C (risk of breakage or slight long-term shade variation).
• Resistance: lacquer range with high durability; compliant with European standard EN 16477.
• VOC emission rating: A+.
• Reaction-to-fire classification: A2-s1-d0.
• Special finishes: metallic silver version; satin finish (PLANILAQUE® COLOR-IT MATE) on matt-etched glass.
• Customization: cold screen printing, face incision, custom patterns possible.
• Communicated thicknesses: 4 mm and 6 mm (see dimensions above).
• Typical applications: wall claddings, cooker backs (tempered version for thermal shock resistance), furniture, cabinet fronts, interior doors, partitions.
