Insulating glass panel PICTUREIT®

temperedpatternedtranslucent

Description
PICTUREit® is a SECURIT® tempered glass with one face printed using enamel inks by a digital printing process. This method permanently and durably applies patterns, photographs or text to various types of glazing. For insulating glass units incorporating PICTUREit®, a technical study (spectrophotometric data and thermal behaviour) is required.

Applications

• Indoor uses: living room (furniture, drawer fronts, table tops), bedroom (wardrobe doors, headboards), bathroom (shower screens, bath panels, shower backs), kitchen (hob splashbacks, splashbacks, worktops, cupboard doors). Also suitable for partition or sliding doors, wall cladding, decorative elements, outdoor furniture.

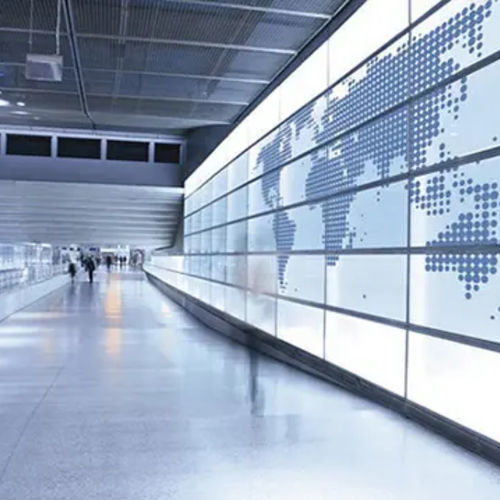

• Outdoor uses: full façade cladding to create large-format décors; in opaque version, installable in ventilated spandrels or as cladding for infill elements (sandwich panels). Printing solutions can preserve or modulate transparency for vision areas.

Advantages

• Unique, realistic images: product and ambiance customization; wide colour range applicable to all designs; image sharpness at 720 Dpi; possibility to enhance contrast; creation of gradient translucent/opaque effects; full-surface or partial printing.
• Permanently fixed, inalterable décors: décor fixed by thermal tempering; very good scratch resistance of the printed layer; suitable for humid environments (bathrooms); colour stability under UV; usable on exterior façades with the enamel face oriented to the building interior.
• SECURIT® product: tempered glass for increased mechanical safety.

Characteristics / technical specifications

• Process: digital printing of enamel on glass, décor fixed by thermal tempering.
• Product type: printed SECURIT® (tempered) glass.
• Printing resolution: 720 Dpi.
• Durability: very good scratch resistance of the décor; colour stability under UV.
• Environmental compatibility: suitable for installation in humid environments (bathrooms).
• Printable thicknesses: wide range from 3 to 19 mm.
• Available glasses: clear glass PLANICLEAR®, extra-clear DIAMANT®, tinted PARSOL®, and compatible with technical glasses COOL-LITE ST, COOL-LITE STB, VISION-LITE II.
• Technical options: full or partial printing, creation of translucent/opaque effects, possibility of drilling or cutting to shape.
• Insulating glazing applications: technical study required (spectrophotometry, thermal behaviour) to define the best solution.
