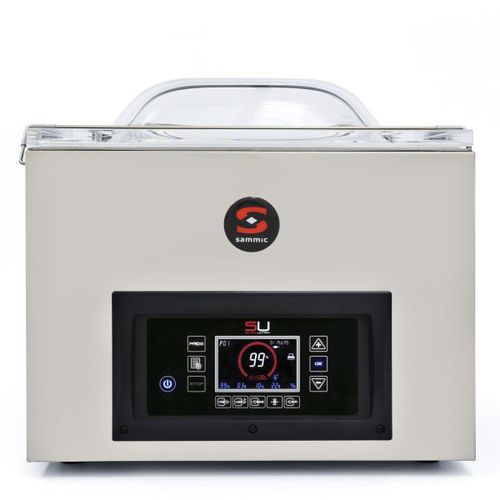

Tabletop model. 20 m³/h. 420 mm.
420 mm. sealing bar.
20 m³/h Busch vacuum pump.
Vacuum controlled by sensor.
Powered by Busch.
Vacuum controlled by sensor.
Vacuum PLUS.
LCD colour screen: all information at a glance.
Backlit touch keyboard.
Programmable: 25-programme memory. Blocking option.
"Pause" button.
Phased vacuum programme.
Detection of the evaporation of liquids.
Double seal.
Cordless sealing bar.
Progressive decompression.
Vac-Norm ready with Automatic decompression.
Stainless steel body and chamber. Deep-drawn chamber.
Damped transparent lid of high durability polycarbonate.
Dry-oil programme for drying the pump.
Working hours counter for oil changes.
Safety system with protection against vacuum failure.
Specifications Sheet
Pump capacity: 20 m3/h
Pump capacity (60 Hz): 24 m3/h
Bar length: 420 mm
Total loading: 750 W
Vacuum pressure (maximum): 2 mbar
Internal dimensions
Width: 430 mm
Depth: 415 mm
Height: 180 mm
External dimensions (WxDxH)
Width: 484 mm
Depth: 529 mm
Height: 448 mm (230V) / 529 mm (120V)
Net weight: 56.7 Kg
Noise level (1m.): 75 dB(A)
Background noise: 32 dB(A)
Crated dimensions
600 x 600 x 610 mm
Gross weight: 62.7 Kg.
Default equipment
BUSCH pump.
Sensor Controls.
25 programmable settings.
Vacuum PLUS: up to 10 seconds of extra vacuum pull.
Soft air function.
Clear methacrylate lid.
"PAUSE" function.
Liquid detection system.
Dry oil cycle.
NSF Approved.
Filling plate.
Optional equipment
Inert gas
Sealing plus
Printer
Bluetooth connectivity
Vacuum packing bags
External vacuum kit for Vac-Norm, containers and accessories
Support for liquid packaging
Additional filling plates
