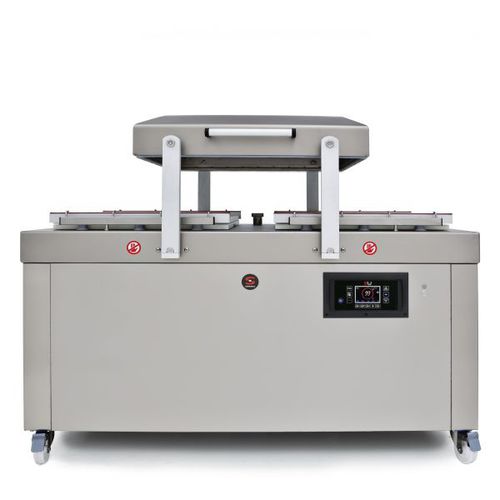

Double chamber vacuum packing machine. 155 m³/h.
High performance model with tilting cover, double chamber and 4 x 662 mm. sealing bars.
155 m³/h. Busch vacuum pump.
Vacuum controlled by sensor.
Powered by Busch.
Vacuum controlled by sensor.
Vacuum PLUS.
LCD colour screen: all information at a glance.
Backlit touch keyboard.
Programmable: 25-programme memory. Blocking option.
"Pause" button.
Phased vacuum programme.
Detection of the evaporation of liquids.
Double seal.
Cordless sealing bar.
Progressive decompression.
Vac-Norm ready with Automatic decompression.
Stainless steel body and chambers.
Tilting cover made of thick, robust stainless steel.
Dry-oil programme for drying the pump.
Working hours counter for oil changes.
Safety system with protection against vacuum failure.
Specifications Sheet
Pump capacity: 155 m3/h
Pump capacity (60 Hz): 186 m3/h
Bar length: 662 mm + 662 mm
Total loading: 4000 W
Vacuum pressure (maximum): 0.5 mbar
Internal dimensions
Width: 662 mm
Depth: 656 mm
Height: 205 mm
External dimensions (WxDxH)
Width: 1640 mm
Depth: 874 mm
Height: 1370 mm
Net weight: 360 Kg
Noise level (1m.): 75 dB(A)
Background noise: 32 dB(A)
Crated dimensions
980 x 1720 x 1280 mm
Gross weight: 475 Kg.
Default equipment
BUSCH pump.
Sensor Controls.
25 programmable settings.
Vacuum PLUS: up to 10 seconds of extra vacuum pull.
Soft air function.
"PAUSE" function.
Liquid detection system.
Dry oil cycle.
NSF Approved.
4 filling plates.
Optional equipment
Inert gas
Sealing plus
Printer
Bluetooth connectivity
Vacuum packing bags
External vacuum kit for Vac-Norm, containers and accessories
Bag cutting kit
Support for liquid packaging
Additional filling plates
