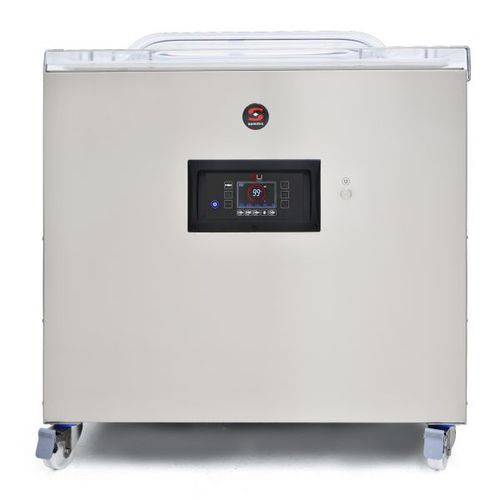

Floorstanding unit. 100m³/h. 530+848 mm.
Two sealing bars (530+848 mm.)
100 m³/h Busch vacuum pump.
Vacuum controlled by sensor.
Powered by Busch.
Vacuum controlled by sensor.
Vacuum PLUS.
LCD colour screen: all information at a glance.
Backlit touch keyboard.
Programmable: 25-programme memory. Blocking option.
"Pause" button.
Phased vacuum programme.
Detection of the evaporation of liquids.
Double seal.
Cordless sealing bar.
Progressive decompression.
Vac-Norm ready with Automatic decompression.
Stainless steel body and chamber.
Damped transparent lid of high durability polycarbonate.
Dry-oil programme for drying the pump.
Working hours counter for oil changes.
Safety system with protection against vacuum failure.
NSF-listed.
Specifications Sheet
Pump capacity: 100 m3/h
Pump capacity (60 Hz): 120 m3/h
Bar length: 530 mm + 848 mm
Total loading: 2200 W
Vacuum pressure (maximum): 0.5 mbar
Internal dimensions
Width: 864 mm
Depth: 603 mm
Height: 215 mm
External dimensions (WxDxH)
Width: 960 mm
Depth: 757 mm
Height: 998 mm
Net weight: 250 Kg
Noise level (1m.): 75 dB(A)
Background noise: 32 dB(A)
Crated dimensions
840 x 1060 x 1200 mm
Gross weight: 275 Kg.
Default equipment
BUSCH pump.
Sensor Controls.
25 programmable settings.
Vacuum PLUS: up to 10 seconds of extra vacuum pull.
Soft air function.
Clear methacrylate lid.
"PAUSE" function.
Liquid detection system.
Dry oil cycle.
NSF Approved.
Filling plate.
Optional equipment
Inert gas
Sealing plus
Printer
Bluetooth connectivity
Vacuum packing bags
External vacuum kit for Vac-Norm, containers and accessories
Bag cutting kit
Support for liquid packaging
Additional filling plates
