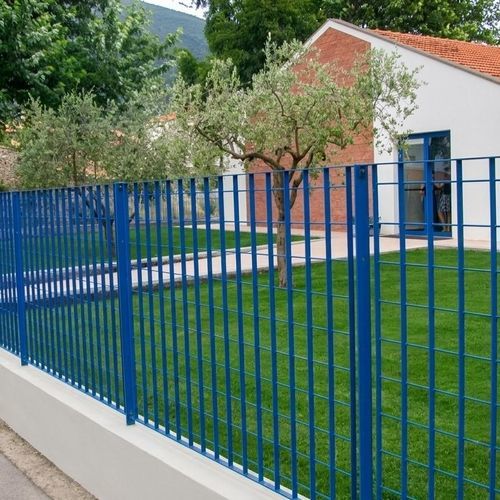

Fence with panels EGNAZIA

residentialcommercialindustrial

EGNAZIA is the is the lightest of EMMEGI fences in steel grating. Featuring a modern square-pattern design, it matches the design of modern buildings. Applications: It is preferred as perimeter fence mostly for residential areas, parking lots and commercial sites Panels Grating mesh size: 124 x 132 mm Vertical elements: flat steel bars 25×2 mm Horizontal elements: steel round bars of diameter Ø 5 mm Distance between vertical bars: 124 mm (center to center) Distance between horizontal bars: 132 mm (center to center) Horizontal frames (top and bottom): steel flat bars 25×4 mm, bent at the edge and provided of a hole 12×16 mm Posts Standard posts: flat steel bars 60×7 or 80×8 mm Posts are provided with two holes, at top and bottom, for hooking the panels Fixing Elements Standard system: hexagonal head screw M10x30 hexagonal nut m10 Anti-theft system: TTQST screw M10x30 and M10 anti-theft nut , also available in black color Coating Hot-dip galvanisation according to UNI EN ISO 1461 Polyester powder coating in a wide variety of colours Standard measures Standard panel width: 1992 mm Distance between posts: 2000 mm (center-to-center) Standard panel heights : 930, 1194, 1458, 1986 mm
