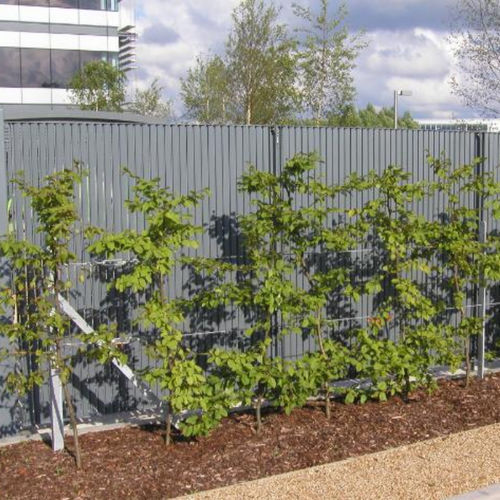

Fence with panels FRANGITALIA

residentialcommercialindustrial

Its unique and elegant design blends particularly well with modern architectural solutions and offers freedom to be installed in both vertical and horizontal applications. Other than perimeter fencing, typical applications of Frangitalia are sunscreens, visual barriers, wall cladding, screening of parking structures, visual concealment of mechanical equipment and gates. FRANGITALIA Vertical | Technical Specifications Modular monolithic panels made of louvre profiles formed by specially shaped 50×1.5 mm louvered bars electrowelded to 4mm diameter vertical round bars. Panels Louvered elements: 50×1.5 mm Round bars: 4mm diameter Distance between round bars: 132 mm Distance between louvered elements: 46 mm Panel Frames: two horizontal top and bottom 30×4 mm flat bars folded and perforated at the ends Posts Standard posts: T-profile steel bar 50×7mm Posts are provided with two holes, at top and bottom, for hooking the panels Fixing Elements Standard system: Hexagon head screw M10x30 and stainless steel hexagon nut M10 Anti-theft system: TTQST M10x30 screw and M10 stainless steel anti-theft nut Coating Hot-dip galvanisation according to UNI EN ISO 1461 Polyester powder coating in a wide variety of colours
