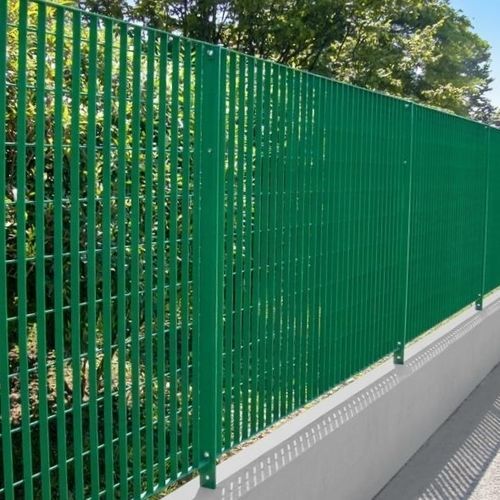

Fence with panels SVEVIA

residentialcommercialindustrial

SVEVIA is a modular fencing system made of press-welded steel grating panels with a rectangular mesh of 62 × 132 mm. It is the most popular fence in the EMMEGI range. Its clean, timeless design, achieved through rectangular press-welded grating, makes it ideal for perimeter fencing while offering effective anti-climb protection. Applications: a highly versatile fencing solution, suitable for commercial buildings, residential areas, and industrial sites. SVEVIA fence system by Emmegi S.p.A., consist of modular, monolithic panels, with a width of 1992 mm. The mesh size is 62×132 mm. Vertical flat bars measure 25×2 mm or 25×3 mm, with a 62 mm centre-to-centre spacing, connected by horizontal round bars Ø 5 mm with a 132 mm centre-to-centre spacing. Panels are framed at the top and bottom edge by 25×4 mm flat bars using an electrofusion process. Frames are bent at the ends over a length of 40 mm and provided with 12×16 mm slotted holes. Posts are manufactured from 60×7 mm flat bars and are provided with suitable holes for panel fixing and for grounding the fence system. Standard post spacing is 2000 mm. Panels Grating mesh size: 62 x 132 mm Vertical elements: flat steel bars 25×2 or 25×3 mm Horizontal elements: steel round bars of diameter Ø 5 mm Distance between vertical bars: 62 mm (center to center) Distance between horizontal bars: 132 mm (center to center) Horizontal frames (top and bottom): steel flat bars 25×4 mm, bent at the edge and provided of a hole 12×16 mm Posts Standard posts: flat steel bars 60×7 or 80×7 mm
