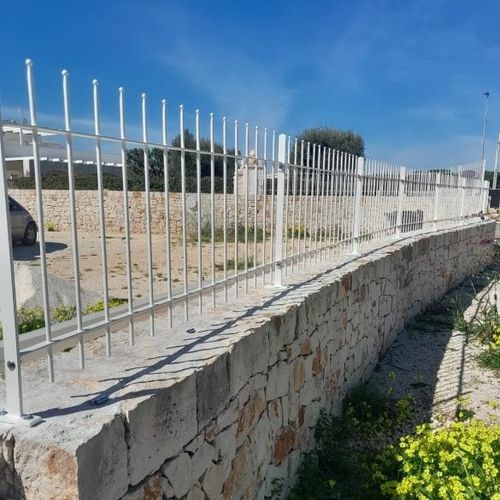

Fence with panels ALTAVILLA

residentialcommercialgalvanised steel

Railing fence ALTAVILLA by EMMEGI is formed by modular panels made of steel vertical round bars of Ø 12 mm diameter that terminate at the top with a spheric end. The vertical bars are welded together with two horizontal elements placed at the top and bottom of the panel. The horizontal elements are made of U-profiles 25x12x4 mm Fence Panels Modular panels, monolithic, without joints, made of vertical tubulars Vertical elements: steel round bars of Ø 12 mm diameter Horizontal elements: U-profile25x12x4 mm, bended at 90°degrees at both edges and provided of a hole 12×16 mm for bolting the panels to the posts Distance between vertical bars: 110 mm (center to center) Posts Standard posts: flat steel bars 60×7 mm Posts are provided with two holes, at top and bottom, for hooking the panels Fixing elements STANDARD SYSTEM: HEXAGONAL HEAD SCREW M10x30 HEXAGONAL NUT M10 in stainless steel ANTI-THEFT SYSTEM: TTQST SCREW M10x30 and M10 ANTI-THEFT NUT in stainless steel, also available in black color Standard ALTAVILLA Fence measures* Standard widths of panels: 1993 mm Standard heights of fence: 600mm, 800 mm, 1000 mm, 1200 mm, 1500mm see table below Distance between posts: 2000 mm (center-to-center) Coating Hot-dip galvanisation according to UNI EN ISO 1461 or ASTM A123 Polyester powder coating in a wide variety of colours
