Fence with panels BIANCALANCIA

residentialcommercialindustrial

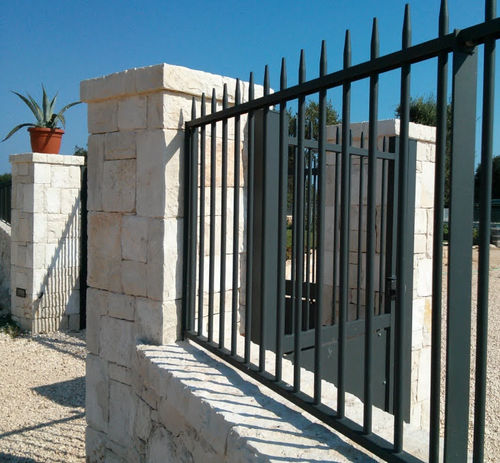

Biancalancia is an elegant railing fence that offers an aesthetically pleasing traditional look providing an high standard of perimeter protection and anti-climb features. It is supplied in modular panels either in the galvanised only version, or in the popular green or dark-grey color. Biancalancia is composed by modular panels, made of vertical tubulars with a tapered conical edge. The tubulars are held together by a steel U-shape channels, positioned at the top and bottom of the panel, to which they are welded. Panels Vertical elements: steel tubolars of diameter Ø 20 or 25 mm Space between vertical elements: 97 mm Horizontal elements (top and bottom): steel U-shape channel 50x25x2 mm, welded to the vertical tubulars. For fence height of 1853 and 2117 mm an extra U-profile is positioned and welded to the tubolars at the center of the panel Posts Standard posts: flat steel bars 60×7 mm Posts are provided with two holes, at top and bottom, for hooking the panels Fixing elements Standard stainless steel bolts and nuts TDE M10x30 Stainless steel anti-theft security bolt TTQST M10x30 Coating Hot-dip galvanisation according to UNI EN ISO 1461 Polyester powder coating in a wide variety of colours
