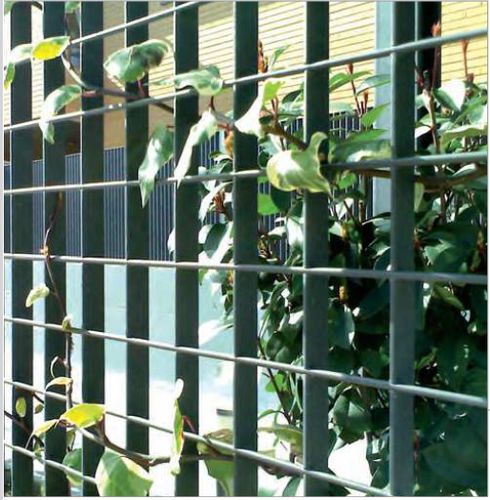

Fence with panels DAUNIA

residentialcommercialindustrial

The characteristic that distinguishes the DAUNIA steel grating fence produced by Emmegi spa is its smaller square mesh compared to Egnazia. Thanks to its neat look, DAUNIA stands as a fence of elegant design macthing, as well, characteristics of solidity and strength thanks to the 66mm spacing between the round bars that delivers excellent rigidity and perimeter security. Technical Specifications DAUNIA fence system by Emmegi S.p.A., consist of modular, monolithic panels, with a width of 1992 mm. The mesh size is 62×66 mm. Vertical flat bars measure 25×2 mm or 25×3 mm, with a 62 mm centre-to-centre spacing, connected by horizontal round bars Ø 5 mm with a 66 mm centre-to-centre spacing. Panels are framed at the top and bottom edge by 25×4 mm flat bars using an electrofusion process. Frames are bent at the ends over a length of 40 mm and provided with 12×16 mm slotted holes. Posts are manufactured from 60×7 mm flat bars and are provided with suitable holes for panel fixing and for grounding the fence system. Standard post spacing is 2000 mm. Panels Grating mesh size: 62 x 66 mm Vertical elements: flat steel bars 25×2 or 25×3 mm Horizontal elements: steel round bars of diameter Ø 5 mm Distance between vertical bars: 62 mm (center to center) Distance between horizontal bars: 66 mm (center to center) Horizontal frames (top and bottom): steel flat bars 25×4 mm, bent at the edge and provided of a hole 12×16 mm Posts Standard posts: flat steel bars 60×7 or 80×8 mm Posts are provided with two holes, at top and bottom, for hooking the panels
