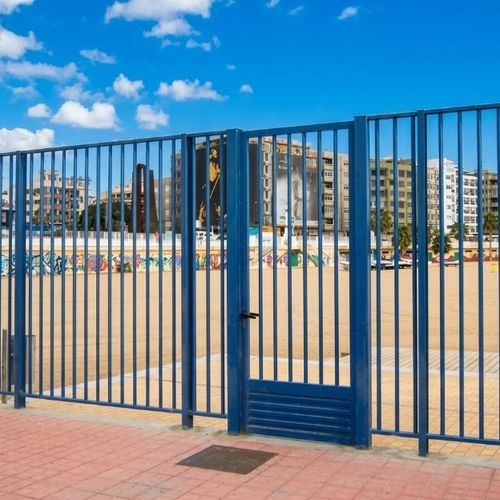

Fence with panels MALVASIA

residentialcommercialindustrial

The Malvasia fence by Emmegi Spa consists of modular panels formed by vertical tubes welded to horizontal rails. Ideal for surrounding parks, gardens and green spaces, it adapts well to rustic and rural settings, even when mounted on dry stone walls. Due to its linearity and practicality, it is also widely used in urban and industrial contexts. Malvasia fence by Emmegi Spa consists of modular panels formed by a series of vertical tubular profiles. The tubulars, with a diameter of Ø 20 mm, are welded to horizontal 50x25x2 mm U-shaped profiles (for heights of 1703 and 1967 mm, the panels have 3 crossbars). Flat 60×7 mm posts equipped with appropriate holes for attaching the panels and for grounding the fence. Panels Vertical Elements: tubulars of diameter Ø 20 mm Horizontal Elements: U-shape 50x25x2 mm, Distanance among vertical elements: 97 mm Posts Flat bar 60×7mm Fixing Elements Standard system: hexagonal head screw M10x30 hexagonal nut m10 Anti-theft system: TTQST screw M10x30 and M10 anti-theft nut , also available in black color Coating Hot-dip galvanisation according to UNI EN ISO 1461 Polyester powder coating in a wide variety of colours
