Metal grid fence CHAMPION D.M.

welded meshfor sports fieldsmodular

Description

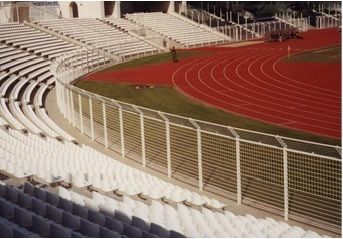

Fence designed according to current safety regulations for the construction and operation of sports facilities. Compliant with UNI EN 13200-3. The Champion D.M. fence is made of modular, monolithic, non-jointed welded mesh panels and IPE 100 posts. Its solidity ensures protection and safety of the playing area while maintaining good visibility for spectators. Available with or without kickboard (offendicola).

Upper panel

• Material: Carbon steel UNI EN 10025 S235JR
• Height: 1174 mm; width: 1995 mm
• Welded mesh opening: 124 x 100 mm
• Horizontal elements: flat bar 25×3 mm
• Vertical elements: round bar Ø 5 mm
• Vertical frames in flat bar 25x3 mm, drilled for anchoring to the post
• Top rail: U profile 50x50x50 mm thickness 3 mm

Lower panel

• Material: Carbon steel UNI EN 10025 S235JR
• Height: 933 mm; length: 1995 mm
• Welded mesh opening: 124 x 50 mm
• Horizontal elements: flat bar 25×3 mm
• Vertical elements: round bar Ø 5 mm
• Vertical frames in flat bar 25x3 mm, drilled for anchoring to the post

Kickboard (offendicola)

• Material: Carbon steel UNI EN 10025 S235JR
• Height: 540 mm
• Welded mesh opening: 124 x 100 mm
• Horizontal elements: flat bar 25×3 mm
• Vertical elements: round bar Ø 5 mm
• Frames in flat bar 25x3 mm, drilled for anchoring to the post
• Top rail for kickboard: square tube 35×35 mm thickness 3 mm

Posts

• Material: Carbon steel UNI EN 10025 S235JR
• Post profile: IPE 100
• Height: 2550 mm (or configuration 2630+560 mm)
• Drilled for panel attachment and earthing of the fence

Fastening elements

• Material: stainless steel AISI 304
• Anti-theft system: TTQST M 10×30 black (on request)

Coating

• Hot-dip galvanizing according to UNI EN ISO 146

Standard sizes

• Standard dimensions of panels and posts as per product technical sheet (panel width: 1995 mm; panel heights as specified for upper, lower and kickboard; posts: 2550 mm or 2630+560 mm)

Characteristics / Technical specifications

• Compliance: UNI EN 13200-3
• Panel type: welded mesh, modular and monolithic
• Main material: Carbon steel UNI EN 10025 S235JR
• Mesh openings: 124x100 mm (upper panel), 124x50 mm (lower panel), 124x100 mm (kickboard)
• Horizontal elements: flat bar 25×3 mm
• Vertical elements: round bar Ø 5 mm
• Vertical frames: flat bar 25x3 mm drilled for anchors
• Top rail (upper panel): U profile 50x50x50 mm thickness 3 mm
• Top rail (kickboard): square tube 35×35 mm thickness 3 mm
• Post: IPE 100 profile
• Available panel heights: 1174 mm (upper), 933 mm (lower), kickboard 540 mm
• Posts: height 2550 mm or alternative 2630+560 mm
• Fastening elements: stainless steel AISI 304; optional anti-theft system TTQST M 10×30
• Finish: hot-dip galvanizing according to UNI EN ISO 146
