LED light fixture 48L
IP65outdoorfor outdoor use

LED light fixture - 48L - Hoffmeister Leuchten GmbH - IP65 / outdoor / for outdoor use
LED light fixture - 48L - Hoffmeister Leuchten GmbH - IP65 / outdoor / for outdoor use
LED light fixture - 48L - Hoffmeister Leuchten GmbH - IP65 / outdoor / for outdoor use - image - 2
LED light fixture - 48L - Hoffmeister Leuchten GmbH - IP65 / outdoor / for outdoor use - image - 3
LED light fixture - 48L - Hoffmeister Leuchten GmbH - IP65 / outdoor / for outdoor use - image - 4
LED light fixture - 48L - Hoffmeister Leuchten GmbH - IP65 / outdoor / for outdoor use - image - 5
LED light fixture - 48L - Hoffmeister Leuchten GmbH - IP65 / outdoor / for outdoor use - image - 6
Add to favorites
Compare this product

Characteristics

Light source
LED
Protection class
IP65
Interior/exterior use
outdoor, for outdoor use
Application
for industrial use, industrial, for boat, for factory
Material
aluminum, polycarbonate
Style
industrial design
Dimmable
dimmable
Other characteristics
DALI
Power

Max.: 140 W
(0.19 hp)

Min.: 120 W
(0.16 hp)

Luminous flux

Max.: 16,710 lm

Min.: 12,020 lm

Color temperature

Max.: 5,700 K

Min.: 3,000 K

Color rendering index (CRI)

Max.: 90 unit

Min.: 70 unit

Description

Overview
  • Versatile areas of application: Suitable for industrial and infrastructure lighting including warehouses, production halls, ports and food-industry zones.
  • Power and efficiency: Available in 120 W and 140 W variants, luminous flux up to approx. 16,000 lm (variant-dependent).
  • Flexible optical options: Multiple light distributions (10°, 25°, 65°, 100°, batwing, asymmetrical deep, asymmetric wide) and colour temperatures (3000 K, 4000 K, 5700 K and special amber).
  • Control and protection: Electronic interface with DALI control available; protection class IP65 for outdoor and washdown environments.
  • Maintainable design: Replaceable modules for easy maintenance and long service life.
  • Special uses: Amber light variants for harbour/coastal applications and insect-friendly spectrum; anti-corrosion options suitable for food-industry environments.


Product variations (table)
  • S48L0033 | 120 W | 100 ° | 5700 K | 14840 lm | electronic (DALI) | IP65 | LED
  • S48L0035 | 120 W | 65 ° | 4000 K | 13390 lm | electronic (DALI) | IP65 | LED
  • S48L0036 | 120 W | 100 ° | 4000 K | 12940 lm | electronic (DALI) | IP65 | LED
  • S48L0032 | 120 W | 65 ° | 5700 K | 14840 lm | electronic (DALI) | IP65 | LED
  • S48L0029 | 120 W | 65 ° | 5700 K | 16710 lm | electronic (DALI) | IP65 | LED
  • S48L0030 | 120 W | 100 ° | 5700 K | 16140 lm | electronic (DALI) | IP65 | LED
  • S48L0026 | 120 W | 65 ° | 4000 K | 16670 lm | electronic (DALI) | IP65 | LED
  • S48L0027 | 120 W | 100 ° | 4000 K | 16100 lm | electronic (DALI) | IP65 | LED
  • 48L4140NWD916 | 140 W | 65 ° | 4000 K | 14790 lm | electronic (DALI) | IP65 | LED
  • 48L1140WWD916 | 140 W | 10 ° | 3000 K | 16090 lm | electronic (DALI) | IP65 | LED
  • 48L2140WWD916 | 140 W | 25 ° | 3000 K | 15730 lm | electronic (DALI) | IP65 | LED
  • 48L4140WWD916 | 140 W | 65 ° | 3000 K | 15910 lm | electronic (DALI) | IP65 | LED
  • 48L2140NWD916 | 140 W | 25 ° | 4000 K | 14620 lm | electronic (DALI) | IP65 | LED
  • 48L1140NWD916 | 140 W | 10 ° | 4000 K | 14960 lm | electronic (DALI) | IP65 | LED
  • S48L0031 | 120 W | batwing | 5700 K | 13800 lm | electronic (DALI) | IP65 | LED
  • S48L0034 | 120 W | batwing | 4000 K | 12020 lm | electronic (DALI) | IP65 | LED
  • S48L0028 | 120 W | batwing | 5700 K | 15010 lm | electronic (DALI) | IP65 | LED
  • S48L0025 | 120 W | batwing | 4000 K | 14970 lm | electronic (DALI) | IP65 | LED
  • 48L9140NWD916 | 140 W | batwing | 4000 K | 13280 lm | electronic (DALI) | IP65 | LED
  • 48L9140WWD916 | 140 W | batwing | 3000 K | 14290 lm | electronic (DALI) | IP65 | LED
  • 48L5140NWD916 | 140 W | asymmetrical deep | 4000 K | 13110 lm | electronic (DALI) | IP65 | LED
  • 48L5140WWD916 | 140 W | asymmetrical deep | 3000 K | 14110 lm | electronic (DALI) | IP65 | LED
  • 48L6140NWD916 | 140 W | asymmetric wide | 4000 K | 13780 lm | electronic (DALI) | IP65 | LED
  • 48L6140WWD916 | 140 W | asymmetric wide | 3000 K | 14830 lm | electronic (DALI) | IP65 | LED


Technical specifications
  • Luminous flux example: up to approx. 16,000 lm at 140 W (variant-dependent).
  • Available outputs: 120 W and 140 W.
  • Light distributions: 10°, 25°, 65°, 100°, batwing, asymmetrical deep, asymmetric wide.
  • Colour temperatures: 3000 K, 4000 K, 5700 K and special amber option.
  • CRI options: >70, >80 and high-CRI options up to >90 for certain inserts.
  • Interfaces: electronic (DALI) control available; ON/OFF or DALI supported in related inserts.
  • Protection class: IP65.
  • Construction: extruded aluminium housing, polycarbonate cover glass, anti-corrosion coatings; increased corrosion protection versions available.
  • Maintainability: replaceable LED modules for simplified service and sustainability.
  • Temperature tolerance: suitable for ambient temperatures up to 45°C/60°C depending on variant.

Catalogs

No catalogs are available for this product.

See all of Hoffmeister Leuchten GmbH ‘s catalogs

Other Hoffmeister Leuchten GmbH products

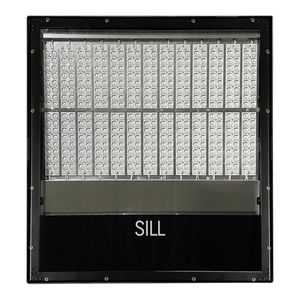

SILL
