LED light module 453/454

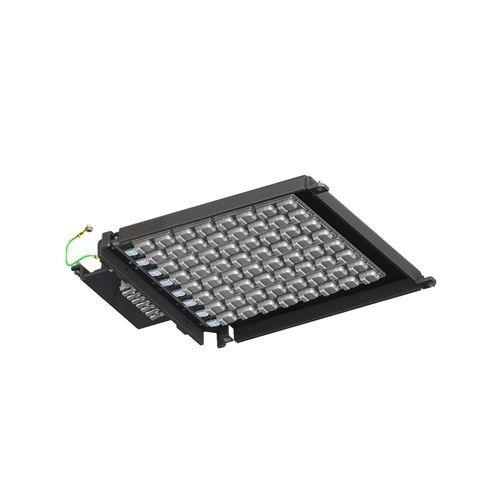

LED light module - 453/454 - Hoffmeister Leuchten GmbH
LED light module - 453/454 - Hoffmeister Leuchten GmbH
Add to favorites
Compare this product

Characteristics

Options
LED

Description

Overview
  • Conversion solution: Conversion kit designed to retrofit existing 453 and 454 housings and glass to LED modules, enabling reuse of the existing installation.
  • Power and flux: System output options 40 W, 80 W and 120 W; luminous flux up to approximately 15,000 lm at 120 W.
  • Control and interface: Integrated intelligent control gear with StepDIM, AstroDIM and MainsDIM; electronic interface (DALI) for listed modules; some modules support ON/OFF depending on the light insert.
  • Optics and distributions: Optimized lens technology for improved uniform illumination. Available light distributions: batwing pedestrian, batwing, asymmetric deep beam, asymmetric wide beam.
  • Light quality: Colour temperatures 3000 K, 4000 K and 5700 K; typical CRI > 80 (specific modules available with CRI > 90).
  • Mechanical and finish: Conversion module length 444 mm; housing in extruded aluminium with finishes in black, silver or white.


Available variants (selection)
  • 8153P120KW-US — 120 W, batwing pedestrian, 5700 K, 14,562 lm, electronic (DALI), 444 mm
  • 8153P080NW-US — 80 W, batwing pedestrian, 4000 K, 8,146 lm, electronic (DALI), 444 mm
  • 8153P040WW-US — 40 W, batwing pedestrian, 3000 K, 4,596 lm, electronic (DALI), 444 mm
  • 81539120KW-US — 120 W, batwing, 5700 K, 14,560 lm, electronic (DALI), 444 mm
  • 81539080WW-US — 80 W, batwing, 3000 K, 8,480 lm, electronic (DALI), 444 mm
  • 81535120KW-US — 120 W, asymmetric deep beam, 5700 K, 13,050 lm, electronic (DALI), 444 mm
  • 81536040KW-US — 40 W, asymmetric wide beam, 5700 K, 4,730 lm, electronic (DALI), 444 mm
  • 81535080NW-US — 80 W, asymmetric deep beam, 4000 K, 7,130 lm, electronic (DALI), 444 mm


Technical specifications
  • Suitable as conversion kit for existing 453 and 454 housings and glass; existing installation can be reused.
  • System output options: 40 W, 80 W, 120 W.
  • Example luminous flux: up to about 15,000 lm at 120 W (product family reference).
  • Colour temperature options: 3000 K, 4000 K, 5700 K.
  • Typical CRI: > 80; certain modules available with CRI > 90.
  • Available light distributions: batwing pedestrian, batwing, asymmetric deep beam, asymmetric wide beam.
  • Interface: electronic (DALI) for listed conversion modules; some modules support ON/OFF depending on light insert.
  • Integrated control features: StepDIM, AstroDIM, MainsDIM.
  • Mechanical length for conversion modules: 444 mm; system modules up to max. 5000 mm for other linear-system components.
  • Housing: extruded aluminium; finish options: black, silver, white.
  • Optics: optimized lens technology for improved illumination; various reflector and beam options available.
  • Additional system components (separate product family): uplights/indirect inserts, direct/indirect inserts, downlights, empty/free modules and modular track components (see variant list for module details).
