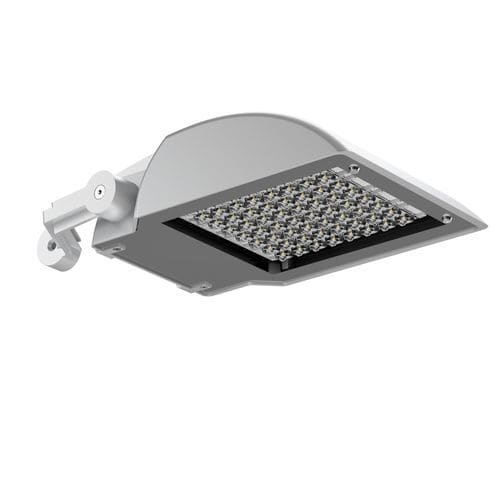

IP65 floodlight SILL 154

LEDfor airportfor station

Overview

• Applications: IP65-rated luminaire for infrastructure, outdoor areas, swimming pools, airports and train stations.
• Power and output: Available system outputs 40 W, 80 W, 120 W; luminous flux up to 15,000 lm at 120 W (example).
• Light distributions: Batwing pedestrian, batwing, asymmetric deep beam, asymmetric wide beam for targeted area lighting.
• Colour temperatures: 3000 K, 4000 K, 5700 K (examples shown).
• Control & intelligence: Electronic interfaces (DALI) available; options include ON/OFF, DALI, StepDim, constant lumen output (CLO) and wireless communication.
• Accessories & variants: Screens, grilles, pigeon protection, pole attachment, wall and ceiling brackets. Also available as SILL 151 (lower outputs) and SILL 153 (with mounting bracket).

Variations (table)
Headers: Article number | Output | Light distribution | Colour temp. | Luminous flux | Interface | Protection class | LED type
154P080NW08-1D | 80 W | batwing pedestrian | 4000 K | 8146 lm | electronic (DALI) | IP65 |
154P080KW08-1D | 80 W | batwing pedestrian | 5700 K | 9933 lm | electronic (DALI) | IP65 |
154P080WW08-1D | 80 W | batwing pedestrian | 3000 K | 8675 lm | electronic (DALI) | IP65 |
154P040KW04-1D | 40 W | batwing pedestrian | 5700 K | 5262 lm | electronic (DALI) | IP65 |
154P040NW04-1D | 40 W | batwing pedestrian | 4000 K | 4316 lm | electronic (DALI) | IP65 |
154P040WW04-1D | 40 W | batwing pedestrian | 3000 K | 4596 lm | electronic (DALI) | IP65 |
154P120KW08-1D | 120 W | batwing pedestrian | 5700 K | 14562 lm | electronic (DALI) | IP65 |
154P120NW08-1D | 120 W | batwing pedestrian | 4000 K | 11942 lm | electronic (DALI) | IP65 |
154P120WW08-1D | 120 W | batwing pedestrian | 3000 K | 12718 lm | electronic (DALI) | IP65 |
1549080KW08-1D | 80 W | batwing | 5700 K | 9720 lm | electronic (DALI) | IP65 | LED
1549080NW08-1D | 80 W | batwing | 4000 K | 7960 lm | electronic (DALI) | IP65 | LED
1549080WW08-1D | 80 W | batwing | 3000 K | 8480 lm | electronic (DALI) | IP65 | LED
1549040NW04-1D | 40 W | batwing | 4000 K | 3980 lm | electronic (DALI) | IP65 | LED
1549120NW08-1D | 120 W | batwing | 4000 K | 12690 lm | electronic (DALI) | IP65 | LED
1549120KW08-1D | 120 W | batwing | 5700 K | 14560 lm | electronic (DALI) | IP65 | LED
1549120WW08-1D | 120 W | batwing | 3000 K | 13680 lm | electronic (DALI) | IP65 | LED
1549040WW04-1D | 40 W | batwing | 3000 K | 4240 lm | electronic (DALI) | IP65 | LED
1549040KW04-1D | 40 W | batwing | 5700 K | 4860 lm | electronic (DALI) | IP65 | LED
1545040NW04-1D | 40 W | asymmetric deep beam | 4000 K | 3570 lm | electronic (DALI) | IP65 | LED
1545040KW04-1D | 40 W | asymmetric deep beam | 5700 K | 4350 lm | electronic (DALI) | IP65 | LED
1545080WW08-1D | 80 W | asymmetric deep beam | 3000 K | 7600 lm | electronic (DALI) | IP65 | LED
1545080NW08-1D | 80 W | asymmetric deep beam | 4000 K | 7130 lm | electronic (DALI) | IP65 | LED
1545080KW08-1D | 80 W | asymmetric deep beam | 5700 K | 8710 lm | electronic (DALI) | IP65 | LED
1545120WW08-1D | 120 W | asymmetric deep beam | 3000 K | 12250 lm | electronic (DALI) | IP65 | LED
1545120NW08-1D | 120 W | asymmetric deep beam | 4000 K | 11370 lm | electronic (DALI) | IP65 | LED
1545120KW08-1D | 120 W | asymmetric deep beam | 5700 K | 13050 lm | electronic (DALI) | IP65 | LED
1545040WW04-1D | 40 W | asymmetric deep beam | 3000 K | 3800 lm | electronic (DALI) | IP65 | LED
1546080KW08-1D | 80 W | asymmetric wide beam | 5700 K | 9470 lm | electronic (DALI) | IP65 | LED
1546040WW04-1D | 40 W | asymmetric wide beam | 3000 K | 4130 lm | electronic (DALI) | IP65 | LED
1546040NW04-1D | 40 W | asymmetric wide beam | 4000 K | 3880 lm | electronic (DALI) | IP65 | LED
1546040KW04-1D | 40 W | asymmetric wide beam | 5700 K | 4730 lm | electronic (DALI) | IP65 | LED
1546080WW08-1D | 80 W | asymmetric wide beam | 3000 K | 8260 lm | electronic (DALI) | IP65 | LED
1546080NW08-1D | 80 W | asymmetric wide beam | 4000 K | 7750 lm | electronic (DALI) | IP65 | LED
1546120WW08-1D | 120 W | asymmetric wide beam | 3000 K | 13320 lm | electronic (DALI) | IP65 | LED
1546120NW08-1D | 120 W | asymmetric wide beam | 4000 K | 12360 lm | electronic (DALI) | IP65 | LED
1546120KW08-1D | 120 W | asymmetric wide beam | 5700 K | 14180 lm | electronic (DALI) | IP65 | LED

Technical specifications

• Series / Model: SILL 154
• Protection class: IP65
• Available system outputs: 40 W, 80 W, 120 W (examples shown); luminous flux up to 15,000 lm at 120 W
• Light distributions: batwing pedestrian, batwing, asymmetric deep beam, asymmetric wide beam
• Colour temperatures: 3000 K, 4000 K, 5700 K (examples shown)
• Interfaces / control: electronic (DALI) available; control options include ON/OFF, DALI, StepDim, constant lumen output, wireless communication
• LED type: LED modules / inserts
• Accessories: screens, grilles, pigeon protection, pole attachment, wall and ceiling bracket
• Variants: also available as SILL 151 (lower outputs) and SILL 153 (with mounting bracket)
