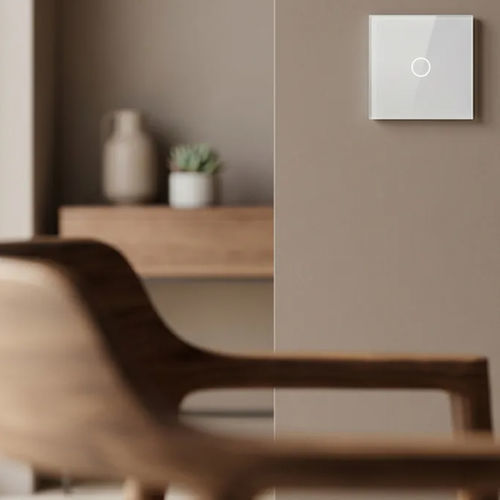

Control push-button T01H

latching

Short description
Touch control for operating a lighting circuit via a latching relay.

Overview
Optimise the control of your electrical equipment with this 1-circuit retractive touch switch mechanism, designed to send a pulse command to a latching relay, a controller or any other control device. With its precise touch control and discreet LED backlighting, it ensures intuitive everyday use while bringing a modern, elegant touch to your interior. Compatible with standard electrical installations, this mechanism is particularly suited to renovation projects as it works without requiring a neutral wire at the switch. Paired with a tempered glass faceplate (sold separately), it delivers a durable premium finish: the colour is applied behind the glass to ensure it lasts extremely well over time.

Product highlights

• Retractive (momentary) function, ideal for a latching relay or an automation system
• Precise touch control and intuitive use
• Control of one switching circuit
• Quick installation on existing electrical wiring
• Works without a neutral wire, ideal for renovation
• Discreet LED backlighting for easy location in the dark
• Premium design with glass faceplate (sold separately)

Installation & compatibility

• Compatible with round or square back boxes ≥ 40 mm
• Horizontal or vertical mounting
• For use on an existing standard electrical installation
• No neutral wire required at the switch
• Compatible applications (Latching relay, Automation, Home automation control, Relay logic input)

Pair it with
One gloss or matt tempered glass faceplate and a metal mounting frame (faceplate sold separately).

What’s in the box

• 1-button retractive touch switch mechanism
• Installation guide
• Glass faceplate and metal mounting frame sold separately

Caractéristiques / spécifications techniques

• Manufacturer: Livolo
• Reference: T01H
• Dimensions: 45 x 45 x 35 mm
• Type: retractive touch switch (pulse)
• Number of circuits: 1 lighting circuit
• Minimum load: 5 W
• Operating temperature: -10°C to +40°C
• Connection: Screw terminal
• Cable cross-section: 1.5 to 2.5mm²
• Certification: CE & RoHS
• Maximum power: 2000 W
• Permissible humidity: up to 95%
• Stripping length: 6mm
• Categories: Switch
• Function: Retractive
• Number of buttons: 1
• Weight: 0.064 kg
