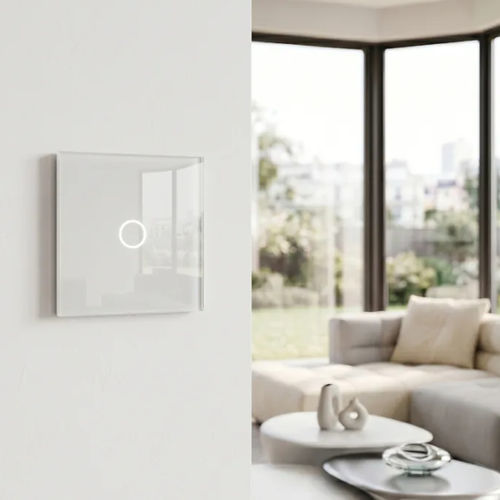

Light dimmer switch T01Dtouchelectronicsquare
Add to favorites
Compare this product
Characteristics
- Use
- light
- Type
- touch
- Technology
- electronic
- Shape
- square
- Other characteristics
- with indicator light
Description
Short description
Touch control for dimming a lighting circuit simply and intuitively, with no neutral required at the dimmer.
Detailed description
Optimize lighting comfort with this 1-button touch dimmer mechanism Livolo T01D. Designed to adjust lamp intensity precisely, it supports single lights or groups of lamps via a smooth touch surface and discreet LED backlight.
The built-in memory stores the last selected level. Soft Start / Soft Off provides progressive dimming for reduced visual disturbance and extended lamp life. The mechanism is compatible with standard installations and does not require a neutral wire at the switch, making it suitable for renovation projects.
When used with a tempered glass faceplate (sold separately) and a compatible frame, the unit provides a durable finish adapted to professional installations.
Product highlights
Installation & compatibility
Pair it with
One gloss or matt tempered glass faceplate and a metal mounting frame (sold separately).
What's in the box
Technical specifications
Touch control for dimming a lighting circuit simply and intuitively, with no neutral required at the dimmer.
Detailed description
Optimize lighting comfort with this 1-button touch dimmer mechanism Livolo T01D. Designed to adjust lamp intensity precisely, it supports single lights or groups of lamps via a smooth touch surface and discreet LED backlight.
The built-in memory stores the last selected level. Soft Start / Soft Off provides progressive dimming for reduced visual disturbance and extended lamp life. The mechanism is compatible with standard installations and does not require a neutral wire at the switch, making it suitable for renovation projects.
When used with a tempered glass faceplate (sold separately) and a compatible frame, the unit provides a durable finish adapted to professional installations.
Product highlights
- Precise intensity adjustment via touch
- Memory of last lighting level
- Progressive dimming: Soft Start / Soft Off
- Quick fit on existing wiring
- Operates without neutral wire, suitable for renovations
- Discrete LED backlight for location in low light
- Compatible with tempered glass faceplates (sold separately)
Installation & compatibility
- Fits round or square back boxes ≥ 40 mm
- Horizontal or vertical mounting
- For use on standard existing electrical installations
- No neutral wire required at the dimmer
- Compatible with dimmable LED and halogen loads
Pair it with
One gloss or matt tempered glass faceplate and a metal mounting frame (sold separately).
What's in the box
- 1-button touch dimmer switch mechanism
- Installation guide
- Glass faceplate and metal mounting frame sold separately
Technical specifications
- Manufacturer: Livolo
- Reference: T01D
- Commercial name: Touch switch - dimmer 1 button
- Dimensions: 45 x 45 x 35 mm
- Type: Touch dimmer
- Number of circuits: 1 lighting circuit
- Minimum load: 10 W
- Operating temperature: -10°C to +40°C
- Connection: Screw terminal
- Cable cross-section: 1.5 to 2.5 mm²
- Certification: CE & RoHS
- Maximum power: 440 W
- Permissible humidity: up to 95%
- Stripping length: 6 mm
- Category: Switch
- Function: Dimmer
- Number of buttons: 1
- Weight: 0.064 kg
