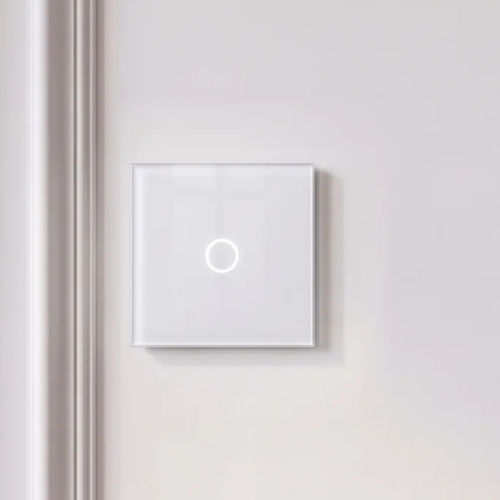

Light dimmer switch T01DS

touchelectronicwith indicator light

Product description
This 1-button two-way touch dimmer mechanism (reference T01DS) provides smooth, intuitive light level control from two switch locations. Designed for retrofit and new installations, it features touch activation, discreet LED locator lighting and an automatic memory that restores the last selected brightness. The progressive Soft Start / Soft Off dimming improves visual comfort and extends lamp life. Compatible with standard wiring, the mechanism does not require a neutral wire at the switch, simplifying installation in renovation projects. When combined with a tempered glass faceplate (sold separately) it delivers a premium, durable finish.

Product highlights

• Precise brightness adjustment via touch control
• Memory function retains last lighting level
• Progressive dimming (Soft Start / Soft Off)
• Quick installation on existing wiring
• Works without a neutral wire — ideal for renovations
• Discreet LED backlight for easy location
• Premium finish with tempered glass faceplate (sold separately)

Installation & compatibility

• Compatible with round or square back boxes ≥ 40 mm
• Can be mounted horizontally or vertically
• For standard existing electrical installations
• No neutral wire required at the dimmer
• Compatible with dimmable LED and halogen loads

Pair it with
One gloss or matt tempered glass faceplate and a metal mounting frame (faceplate and frame sold separately).

What's in the box

• Two-way touch dimmer switch mechanism, 1 button
• Installation guide
• Glass faceplate and metal mounting frame sold separately

Technical specifications

• Manufacturer: Livolo
• Reference: T01DS
• Dimensions: 45 x 45 x 35 mm
• Type: Touch dimmer
• Number of circuits: 1 lighting circuit
• Minimum load: 10 W
• Maximum power: 440 W
• Operating temperature: -10°C to +40°C
• Permissible humidity: up to 95%
• Connection: Screw terminal
• Cable cross-section: 1.5 to 2.5 mm²
• Stripping length: 6 mm
• Certification: CE & RoHS
• Categories: Switch
• Function: Two-way dimmer
• Number of buttons: 1
