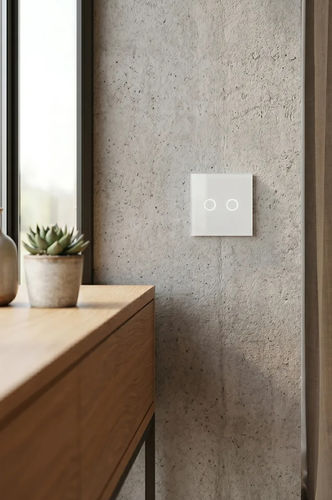

Light dimmer switch T02DS

touchelectronicrecessed

Description
Optimize interior lighting with this 2-button two-way touch dimmer mechanism (T02DS). It allows brightness adjustment from two control points via smooth touch control and discreet LED backlighting. The device includes memory of the last level and progressive Soft Start / Soft Off dimming to improve visual comfort and extend lamp life. Compatible with standard wiring and suitable for renovation projects since it operates without a neutral wire at the switch. A tempered glass faceplate (sold separately) provides a premium, durable finish.

Product highlights

• Precise brightness adjustment by touch
• Memory function retains last lighting level
• Progressive Soft Start / Soft Off dimming
• Quick installation on existing wiring
• Operates without neutral wire — ideal for renovation
• Discreet LED backlight for easy location
• Premium finish with tempered glass faceplate (sold separately)

Installation & compatibility

• Fits round or square back boxes ≥ 40 mm
• Can be mounted horizontally or vertically
• Designed for standard electrical installations
• No neutral wire required at the dimmer
• Compatible with dimmable LED and halogen loads

Pair it with
One gloss or matt tempered glass faceplate and a compatible metal mounting frame (sold separately)

What's in the box

• 2-button two-way touch dimmer switch mechanism
• Installation guide
• Glass faceplate and metal mounting frame sold separately

Technical characteristics / specifications

• Manufacturer: Livolo
• Reference: T02DS
• Dimensions: 45 x 45 x 35 mm
• Type: Touch dimmer
• Number of circuits: 2 lighting circuits
• Minimum load: 10 W
• Operating temperature: -10°C to +40°C
• Connection: Screw terminal
• Cable cross-section: 1.5 to 2.5 mm²
• Certification: CE & RoHS
• Maximum power: 440 W
• Permissible humidity: up to 95%
• Stripping length: 6 mm
• Categories: Switch
• Function: Two-way dimmer
• Number of buttons: 2
