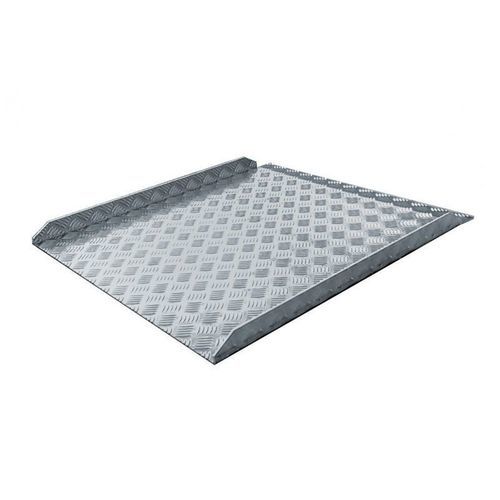

Aluminum ramp RIVIERA

threshold

Product information
The Riviera threshold ramp is an aluminium access ramp for crossing door thresholds and small level changes. It is supplied in several lengths and features safety guiding edges and a chequered slip-resistant surface.

Characteristics

• 60 mm lip (in addition to usable length)
• 2 guiding edges (height 50 mm) for improved safety
• Material: natural aluminium with chequered pattern EN 5754 AlMg3 H114
• Finish/color: natural

Use

• Thresholds / doorways

Installation

• Fixed directly onto the floor

Technical specifications

• Length (mm): 400, 800, 1000, 1200
• Using width (mm): 750 (for all lengths)
• Overall length (mm): 763 (for all lengths)
• Mass (kg/p): 5; 9; 12; 14 (for lengths 400, 800, 1000, 1200)
• Thickness (mm): 5
• Maximum load (kg): 300
• Crossing height (cm): 18
• Material / standard: Aluminium natural, chequered pattern, EN 5754 AlMg3 H114
