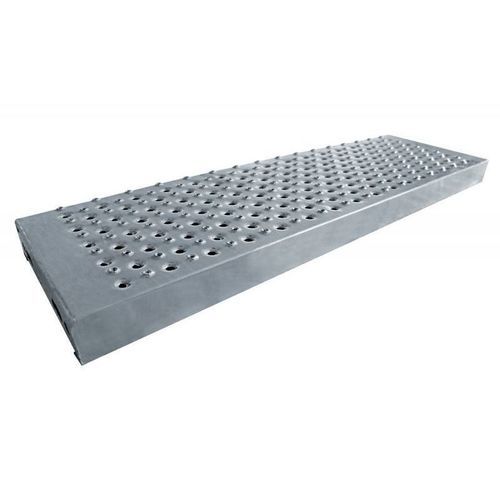

Hot-dip galvanised steel step 240

non-slipcontemporary

Product information

Characteristics

• Perforated edging for attachment to side plates
• Material: hot-dip galvanized steel (ISO 1461)

Use

• For staircases with minimum pitch angle 43° (with 50 mm overlap)
• Compliant with French accessibility standards (ERP/APH)

Installation

• Fixed to side plates with 12 mm diameter bolts (bolts available on request)

Perforation options

• ADERSTEP-TOLPICOT — open area 2%
• STEPHUIT-TOLHUIT — open area 7%
• STEPCLAIR-TOLMIXTE — open area 21%
• STEPBLOC-TOLPLUS — open area 47%

Dimensions and masses (examples)
Perforations ADERSTEP / STEPHUIT / STEPCLAIR
Width (mm): 600 | 700 | 800 | 900 | 1000 | 1200
Depth (mm): 240 | 240 | 240 | 240 | 240 | 240
Height (mm): 50 | 50 | 50 | 50 | 50 | 50
Mass (kg/p): 3.9 | 4.5 | 5.1 | 5.7 | 6.3 | 7.4

Perforation STEPBLOC-TOLPLUS
Width (mm): 600 | 700 | 800 | 900 | 1000
Depth (mm): 240 | 240 | 240 | 240 | 240
Height (mm): 40 | 40 | 40 | 40 | 40
Mass (kg/p): 3.9 | 4.5 | 5.1 | 5.7 | 6.3

Technical specifications

• Product: stair step (model family: Step Depth)
• Available widths: 600, 700, 800, 900, 1000, 1200 mm (1200 available for some perforations)
• Nominal depth: 240 mm
• Available heights: 50 mm (ADERSTEP/STEPHUIT/STEPCLAIR); 40 mm (STEPBLOC)
• Material: hot-dip galvanized steel, ISO 1461
• Perforated edge for side-plate attachment
• Installation: fixed on side plates with Ø12 mm bolts
• Minimum staircase pitch: 43° (with 50 mm overlap)
• Conforms to French accessibility requirements (ERP/APH)
