Anodized aluminum tactile tile TOLPLOT
durable

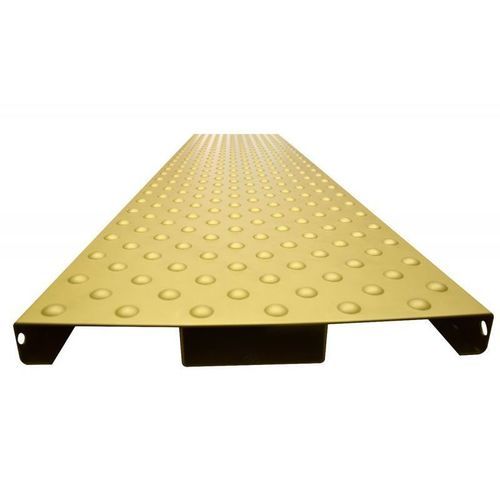

Anodized aluminum tactile tile - TOLPLOT - MEISER - durable
Anodized aluminum tactile tile - TOLPLOT - MEISER - durable
Add to favorites
Compare this product

Characteristics

Material
anodized aluminum
Other characteristics
durable

Description

Product information

Characteristics
  • Circular studs: 5 mm depth, 25 mm diameter, 75 mm center spacing
  • Material: anodized aluminum EN 5754 AlMg3 H22
  • Designed to support pedestrian loads with a 2000 mm span
  • Available colors: gold, black


Use
  • Contrasted tactile warning area for visually impaired users
  • Install 500 mm in front of a landing or stair edge


Installation
  • Fix to supporting beams
  • Steel or timber gratings require appropriate cut-out
  • Cut to length on site


Technical data
  • Length (carrier direction): 2000 mm
  • Width: 480 mm
  • Height: 30 mm or 50 mm
  • Mass: 14.8 kg per element


Technical specifications
  • Model: Tolplot
  • Material: anodized aluminum EN 5754 AlMg3 H22
  • Studs: 5 mm depth; 25 mm diameter; 75 mm spacing
  • Span capacity: supports pedestrian loads for 2000 mm span
  • Colors: gold, black
  • Dimensions (variants): Length 2000 mm; Width 480 mm; Height 30 mm or 50 mm
  • Mass: 14.8 kg per element
  • Recommended placement: 500 mm in front of landing or stair edge
  • Installation notes: mount on beams; cut-out required for steel or timber gratings; cut to length on site
