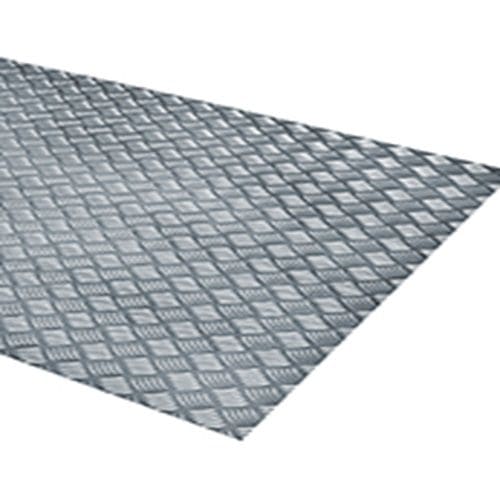

Ribbed sheet metal

aluminumtexturedgray

Product information

• Slip resistance class: R9
• Type: raw aluminium grade EN 5754 AlMg3 H114

Use

• Provides anti-skid surface, facilitates drainage and improves safety on floor surfaces

Installation

• Attach directly to the floor with countersunk screws or adhesive

Technical data
Material | Thickness (mm) | Length (mm) | Width (mm) | Mass (kg/pc)
Alloy raw aluminium EN 5754 AlMg3 H114 | 2 / 3.5 | 2000 | 1000 | 12.0
Alloy raw aluminium EN 5754 AlMg3 H114 | 2 / 3.5 | 3000 | 1500 | 28.0
Alloy raw aluminium EN 5754 AlMg3 H114 | 5 / 6.5 | 2000 | 1000 | 30.0
Alloy raw aluminium EN 5754 AlMg3 H114 | 5 / 6.5 | 3000 | 1500 | 66.0

Characteristics / technical specifications

• Material: Alloy raw aluminium EN 5754 AlMg3 H114
• Slip resistance class: R9
• Thickness options (mm): 2 / 3.5 and 5 / 6.5
• Lengths (mm): 2000, 3000
• Widths (mm): 1000, 1500
• Mass (kg/pc) options: 12.0; 28.0; 30.0; 66.0
• Installation: attach directly to the floor with countersunk screws or adhesive
• Intended use: anti-skid surface, drainage and safety on floors
