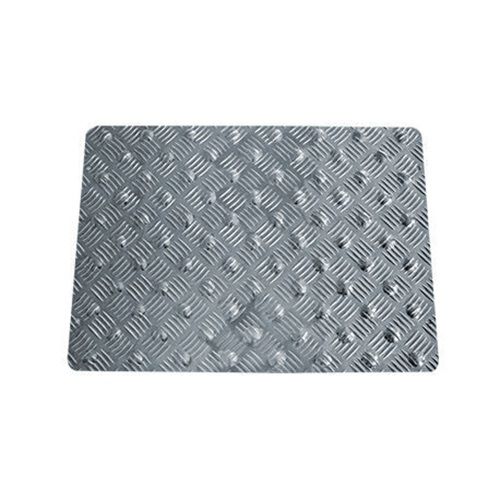

Aluminum tactile tile TOLPLOT

Product information
Characteristics

• Circular stampings: depth 5 mm, diameter 25 mm, axis 75 mm
• 4 mounting holes, diameter 8 mm
• Material: chequered aluminium EN 5754 AlMg3 H114
• Color: natural
• Thickness: 2 / 4 mm

Use

• Contrasted tactile (podotactile) area for visually impaired guidance
• Recommended placement: 500 mm in front of the stair landing

Installation

• Direct fixing to floor with countersunk screws or with adhesive

Technical data
Length (mm): 800
Width (mm): 420
Thickness (mm): 2 / 4
Mass (kg/p): 2.2

Characteristics / technical specifications

• Product name: Checkerboard Carpet Tolplot
• Material: chequered aluminium EN 5754 AlMg3 H114
• Color: natural
• Circular stamping: depth 5 mm, diameter 25 mm, axis 75 mm
• Mounting holes: 4 holes, diameter 8 mm
• Recommended placement: 500 mm in front of the stair landing
• Installation methods: countersunk screws or adhesive
• Dimensions: 800 mm (length) × 420 mm (width)
• Thickness: 2 / 4 mm
• Mass: 2.2 kg per piece
