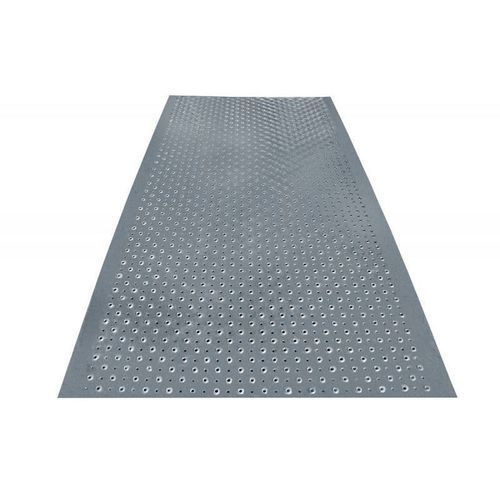

Perforated sheet metal SECURITOP

galvanized steelsteeltextured

Product information

Characteristics

• Perforation: Ø8 mm upward embossed perforations alternating with Ø8 mm flat holes (pattern 8/13)
• Edge: 60 mm edge in lengthwise direction (front side with perforations)
• Percentage of voids: 9.6%

Use

• Function: Anti-skid, drainage and safety
• Conforms to French accessibility standards (ERP, APH)

Installation

• Attach directly to the floor with countersunk screws or adhesive

Technical data
Thickness (mm) | Length (mm) | Width (mm) | Mass (kg/p)
Raw steel — 3 | 2000 | 1000 | 42.3
Raw steel — 3 | 3000 | 1500 | 108.0
Hot dip galvanized steel — 3 | 2000 | 1000 | 45.3
Hot dip galvanized steel — 3 | 3000 | 1500 | 108.0

Characteristics / Technical specifications

• Materials: Raw steel and hot dip galvanized steel (ISO 1461)
• Thickness: 3 mm
• Available sizes: 3 mm x 2000 x 1000 mm — 42.3 kg/p; 3 mm x 3000 x 1500 mm — 108.0 kg/p (raw steel)
• Available galvanized sizes: 3 mm x 2000 x 1000 mm — 45.3 kg/p; 3 mm x 3000 x 1500 mm — 108.0 kg/p (hot dip galvanized)
• Perforation pattern: Ø8 mm upward embossed alternating with Ø8 mm flat
• Edge detail: 60 mm edge in lengthwise direction, front side with perforations
• Function: Anti-skid surface, water drainage and pedestrian/worker safety
• Installation: Fix directly to the floor with countersunk screws or use appropriate adhesives
