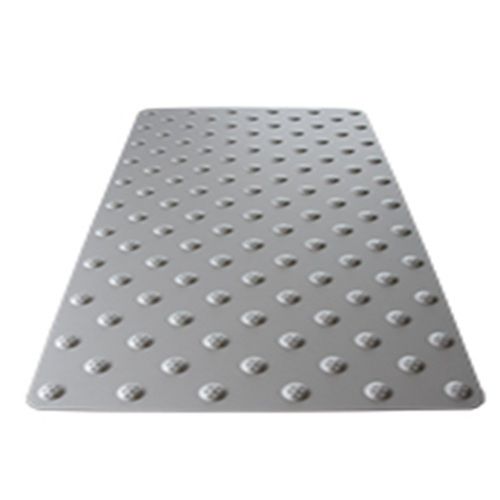

Anodized aluminum tactile tile TOLPLOT

Anodized aluminum tactile tile - TOLPLOT - MEISER
Anodized aluminum tactile tile - TOLPLOT - MEISER
Add to favorites
Compare this product

Characteristics

Material
anodized aluminum

Description

Product overview
  • Tactile warning plate designed for stair landings and pedestrian circulation areas; model Tolplot.
  • Raised circular studs create a podotactile surface to signal hazards to visually impaired users.


Characteristics
  • Raised circular studs: 5 mm depth, 25 mm diameter, center-to-center 75 mm
  • Material: anodized aluminum (EN 5754 AlMg3 H22)
  • Available colors: natural (silver), gold, black


Use
  • Warning/podotactile surface to indicate the presence of a landing or stair
  • Recommended placement: 500 mm in front of the landing or stair edge


Installation
  • Fixed directly to the floor with countersunk screws or with construction adhesive
  • Compatible with concrete, tile and metal subfloors — ensure a clean, dry surface before adhesive installation


Technical specifications
  • Length (mm): 800
  • Width (mm): 420
  • Thickness (mm): 2 / 4
  • Mass (kg/unit): 2.0
