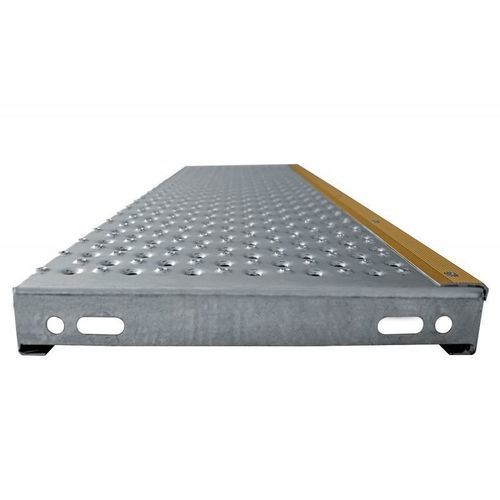

Perforated aluminum stair nosing LICORNE

hot-dip galvanised steelnon-slip

Features
Stair tread composed of a perforated section and a ribbed aluminum nosing (natural, gold or black) fixed by rivets or adhesive.

• Available perforations:
• ADERSTEP-TOLPICOT (2% open area)
• STEPHUIT-TOLHUIT (7% open area)
• STEPCLAIR-TOLMIXTE (21% open area)

Dropped punched edges for fixing to stringer.
Finish: hot-dip galvanized steel according to ISO 1461.

Usage
For stairs with a minimum slope of 27° (for 50 mm overlap). Compliant with ERP and APH.

Assembly
Fixing to stringers with Ø12 mm bolts (supplied on request).

Dimension table
Width (mm): 900 | 1000 | 1200 | 1400
Depth (mm): 330 | 330 | 330 | 330
Height (mm): 50 | 50 | 50 | 75
Weight (kg/pc): 7.1 | 7.8 | 9.2 | 10.7

Characteristics / technical specifications

• Model: NEZ LICORNE
• Material: hot-dip galvanized steel (ISO 1461)
• Nosing: ribbed aluminum, finish natural / gold / black, fixed by rivets or adhesive
• Perforations: ADERSTEP-TOLPICOT (2% open area), STEPHUIT-TOLHUIT (7% open area), STEPCLAIR-TOLMIXTE (21% open area)
• Edges: dropped and punched for fixing to stringer
• Fixing: Ø12 mm bolts (supplied on request)
• Usage: for stairs slope ≥27° (50 mm overlap), compliant with ERP and APH
• Available dimensions (W x D x H mm): W = 900 / 1000 / 1200 / 1400, D = 330, H = 50 / 50 / 50 / 75
• Weight per piece (kg): 7.1 / 7.8 / 9.2 / 10.7
