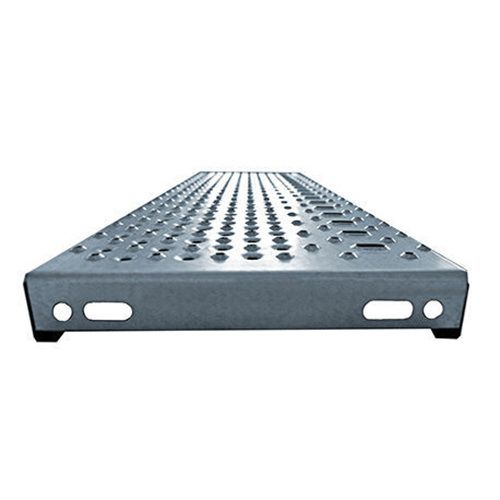

Hot-dip galvanised steel step ARMANDIE

non-slip

Product information
Characteristics

• Perforation: upward embossed holes Ø5/8 mm; downward embossed holes Ø8/13 mm; elongated upward holes Ø19/10 mm on the nosing; open area 7%
• Visual contrast on the nosing
• Perforated edging for fixing to side plates
• Material: hot-dip galvanized steel (ISO 1461)

Use

• For stairs with minimum pitch angle 27° (with 50 mm overlap)
• Conforms to French accessibility (handicap) standards

Installation

• Fixed to side plates with Ø12 mm bolts (bolts available on request)

Technical data
Width (mm): 800 | 900 | 1000 | 1200 | 1400
Depth (mm): 330
Height (mm): 50 (75 for 1400 mm)
Mass (kg / piece): 6.7 | 7.5 | 8.2 | 9.7 | 12.1

Characteristics / technical specifications

• Widths (mm): 800; 900; 1000; 1200; 1400
• Depth (mm): 330
• Height (mm): 50 (75 for 1400 mm)
• Mass (kg per piece): 6.7; 7.5; 8.2; 9.7; 12.1
• Perforation details: upward embossed Ø5/8 mm; downward embossed Ø8/13 mm; elongated upward Ø19/10 mm on nosing; open area 7%
• Material: Hot-dip galvanized steel (ISO 1461)
• Minimum stair pitch: 27° (with 50 mm overlap)
• Conforms to French accessibility standards
• Installation: fixed to side plates with Ø12 mm bolts
