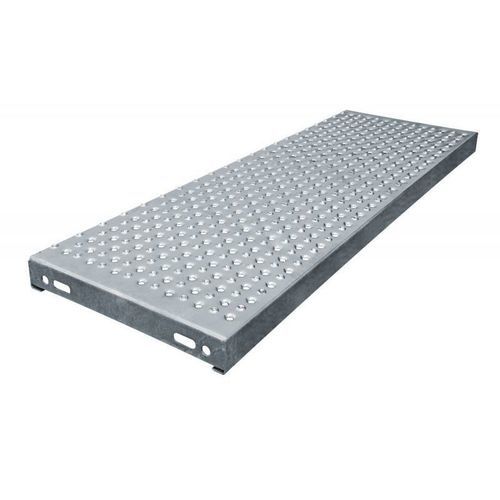

Hot-dip galvanised steel step CLASSIQUE

non-slip

Characteristics
Perforated step composed of a solid rear edge and a perforated nosing at the front.

• Perforation variants: ADERSTEP-TOLPICOT (void 2%)
• STEPHUIT-TOLHUIT (void 7%)
• STEPCLAIR-TOLMIXTE (void 21%)

Use

• Minimum stair pitch angle: 27° (with 50 mm overlap)
• Conforms to French accessibility standards (ERP and APH)

Installation

• Fixed on side plates with 12 mm diameter bolts (provided on request)

Technical data
Width (mm): 900 | 1000 | 1200 | 1400
Depth (mm): 330 | 330 | 330 | 330
Height (mm): 50 | 50 | 50 | 75
Mass (kg/p): 7.1 | 7.8 | 9.2 | 10.7

Technical specifications

• Model: Step Depth 330 classic
• Material: Hot Dip Galvanized steel (ISO 1461)
• Depth: 330 mm
• Available widths: 900 mm, 1000 mm, 1200 mm, 1400 mm
• Available heights: 50 mm (for 900 / 1000 / 1200 widths), 75 mm (for 1400 width)
• Mass per piece: 7.1 kg (900), 7.8 kg (1000), 9.2 kg (1200), 10.7 kg (1400)
• Perforated steps with smooth rear edge; reversible
• Perforated edging to attach side plates
• Can accept nosing step LICORNE
• Minimum stair pitch angle: 27° (with 50 mm overlap)
• Conforms to French accessibility standards (ERP and APH)
• Installation: fixed on side plates with Ø 12 mm bolts (available on request)
