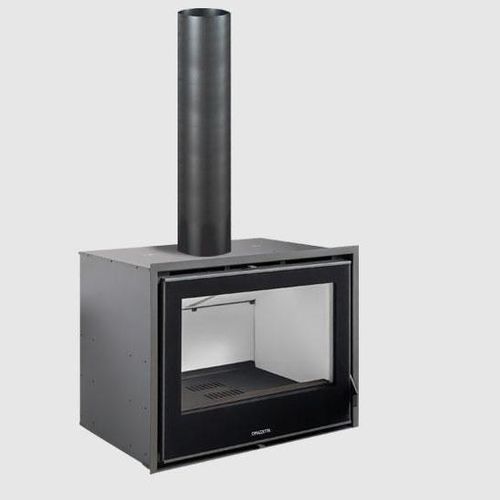

Wood-burning fireplace insert IL 70/56

cast ironsteelforced convection

Product Description
Wood insert with essential design featuring panoramic glass and reversible door. Integrated two-speed ventilation, adjustable air, and Clean Glass system for a clear view.

Combining performance and practicality: the large combustion chamber and panoramic glass enhance the flame experience, while the reversible door with double glazing ensures comfort and versatility. Integrated two-speed ventilation system, manual or automatic, distributes heat evenly. Optimized combustion and low PP emissions of 12 mg/m³.

Main Features

• Steel cladding
• Aluker® firebox and cast iron brazier
• Tertiary air system
• Removable ash drawer
• Non-ducted forced ventilation kit

Optional

• Ash vacuum cleaner for stove cleaning

Technical Data
Energy Efficiency Class | A+ (G → A++)
Nominal Thermal Power | 7.5 kW
Efficiency | 86 %
Heatable Volume | 125 - 215 m³
Wood Consumption | * kg/h
Flue Diameter | 150 mm
Product Weight: 147 kg
Product Dimensions (LxPxH): See product sheet

Characteristics / Technical Specifications

• Essential design with panoramic glass
• Reversible door with double glazing
• Integrated two-speed ventilation (manual or automatic)
• Adjustable air
• Clean Glass system
• Optimized combustion
• PP emissions: 12 mg/m³
• Steel cladding
• Aluker® firebox
• Cast iron brazier
• Tertiary air system
• Removable ash drawer
• Non-ducted forced ventilation kit
• Optional: ash vacuum cleaner
• Weight: 147 kg
• Flue diameter: 150 mm
• Energy class: A+
• Nominal power: 7.5 kW
• Efficiency: 86%
• Heatable volume: 125-215 m³
