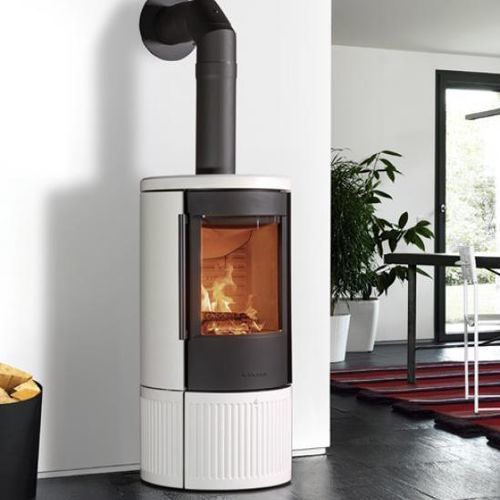

Wood heating stove E909 - 5

7 kWwall-mountedcorner

Description
The E909 is a wood-burning stove with a large firebox designed to maximise the view of the flame. Suitable for heating large spaces, it features a tall Majolica base with a ribbed texture that enhances radiant heat and aesthetic presence. The WIKING® Automaticᵀᴹ combustion system automatically adjusts primary air intake according to the temperature in the fire chamber, requiring no manual intervention or electrical power.

Available colours

• Ceramic Grey
• White
• Myrtle Green
• Matte Black
• Slate
• Lava Red

Main features

• Corner installation (Corner)
• Wall installation (Wall)
• WIKING® Automaticᵀᴹ combustion control
• Natural convection heating
• Tertiary air system for improved combustion
• Skamolex firebox
• Radiant Majolica cladding
• Removable ash box
• Air wash system for glass cleaning
• Top flue outlet

Optional

• External air kit (air intake kit for combustion from outside)

Technical data
LUMA 4
Energy efficiency class: A+ (G → A++)
Nominal heat output: 7.0 kW
Efficiency: 81 %
Heatable volume: 120 - 210 m³
Wood consumption: 1.5 kg/h
Flue outlet diameter: 150 mm
Product weight: 120 kg
Product dimensions (W×D×H): 568 × 487 × 1130 mm

Characteristics / technical specifications

• Model: E909
• Brand: Piazzetta
• Cladding: Majolica (ribbed texture, radiant effect)
• Combustion system: WIKING® Automaticᵀᴹ (automatic air intake regulation)
• Firebox: Skamolex Firebox
• Operation: air heating / natural convection
• Tertiary air for improved combustion
• Removable ash drawer
• Air wash system to keep the glass clean
• Top flue outlet, diameter 150 mm
• Energy class: A+
• Nominal power: 7.0 kW
• Efficiency: 81 %
• Indicative heatable volume: 120–210 m³
• Wood consumption: 1.5 kg/h
• Weight: 120 kg
• Dimensions (W×D×H): 568 × 487 × 1130 mm
