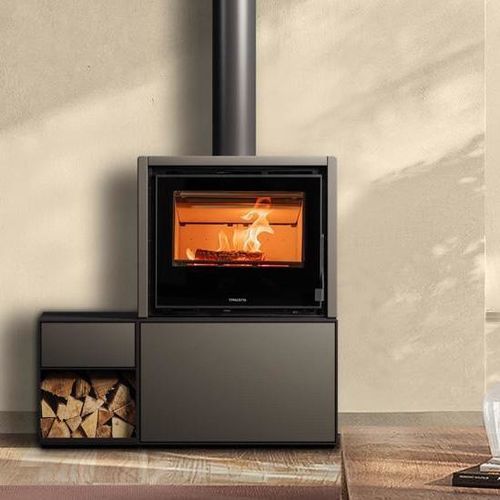

Wood heating stove VOXEL COMB. C

6 kWfree-standingcontemporary

Description
Modular free-standing wood stove available with three insert sizes and outputs: IL 60/50, IL 70/56 and IL 80/60. Modules in majolica and steel, with optional shelves and push-pull drawers. Configurable in horizontal and vertical arrangements. Optional Multifuoco® System for heat distribution.

Available colors

• Matte black
• Dove grey
• Terracotta
• Lime white
• Lava red

Main features

• Firebox in refractory material and steel brazier
• Radiant majolica cladding
• Tertiary air system
• Non-ductable forced ventilation kit

Optional

• Multifuoco® System
• Dedicated ash vacuum for stove cleaning

Technical data
Reference model for the listed data: IL 60/50 5 STELLE
Energy efficiency class: A+ (G → A++)
Nominal thermal power: 6.0 kW
Efficiency: 88 %
Heatable volume: 100 - 175 m³
Wood consumption: 1.60 kg/h
Flue outlet diameter: 150 mm

Note on weight/dimensions
Product weight: 62 kg
Product dimensions (W×D×H): See product sheet

Characteristics / technical specifications

• Type: modular free-standing wood stove
• Insert variants: IL 60/50, IL 70/56, IL 80/60
• Materials: majolica and steel modules
• Installation modes: configurable horizontally and vertically
• Air systems: primary / secondary / tertiary air
• Available accessories: Multifuoco® System, ventilation kit, ash vacuum
• Environmental certification: 5 Star (for the indicated versions)
• Energy efficiency (IL 60/50 5 STELLE): A+ (G → A++)
• Nominal power (IL 60/50 5 STELLE): 6.0 kW
• Efficiency (IL 60/50 5 STELLE): 88 %
• Heatable volume (IL 60/50 5 STELLE): 100 - 175 m³
• Wood consumption (IL 60/50 5 STELLE): 1.60 kg/h
• Flue outlet diameter: 150 mm
• Weight: 62 kg
