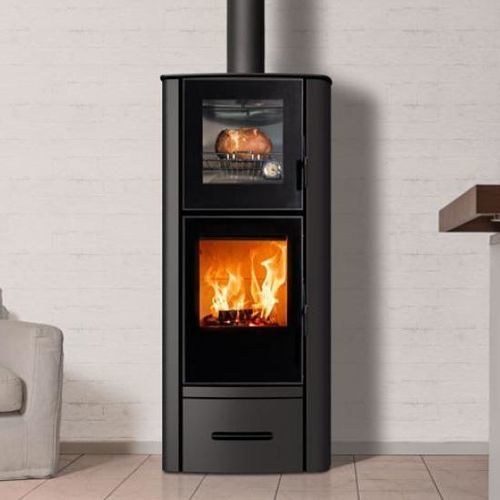

Wood heating stove E928 F

5 kW...10 kWwall-mountedcorner

Presentation Wood-burning stove with integrated oven, steel cladding Prime Design and optional Multifuoco® System. 5-star environmental certification. Modern design with a food-grade steel oven sized 29.5 x 29.5 x 31 cm and a steam-release valve. Printed glass door. Nominal thermal power 9.0 kW.

Available colours

• BLACK
• WHITE
• CORTEN

Main features

• Cladding: Steel (Steel versions)
• Hermetic combustion chamber with external air intake - suitable for passive houses
• Tertiary air system
• Adjustable primary and secondary air
• Top flue outlet
• Room heating by natural convection
• Unit with oven for cooking (oven with thermostat)
• Corner-installable
• Combustion chamber in Aluker®
• Removable ash box
• High-thickness cast iron door
• Wall-mountable

Optional

• Dedicated ash vacuum (Vacuum)
• External air kit (External air kit)
• Multifuoco® System (optional)

Technical data E928 STEEL FORNO
Energy class: A+ (G → A++)
Nominal thermal power: ≥ 9.0 kW
Efficiency: ≥ 85%
Heatable volume: 150 - 260 m³
Wood consumption: ≥ 2 Kg/h
Flue outlet diameter: 150 mm
Product weight: ≥ 300 kg
Oven dimensions: 29.5 x 29.5 x 31 cm (food-grade steel oven) - oven with steam-release valve

Characteristics / technical specifications

• Model: E928 F Steel
• Brand: Piazzetta
• Delivered power: ≥ 9.0 kW
• Energy class: A+ (G → A++)
• Efficiency: ≥ 85%
• Heatable volume: 150 - 260 m³
• Wood consumption: ≥ 2 Kg/h
• Flue outlet diameter: 150 mm
• Weight: ≥ 300 kg
• Oven: food-grade steel 29.5 x 29.5 x 31 cm with thermostat and steam valve
• Cladding: Prime Design steel
• Combustion chamber: Aluker®
• Placement: wall-mountable and corner-installable
• Main optional accessories: Ash vacuum, external air kit, Multifuoco® System
