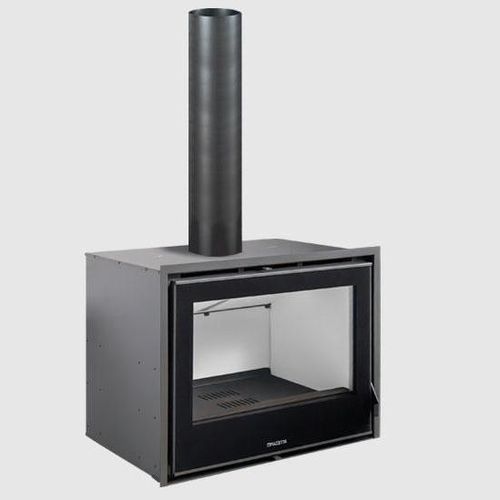

Wood-burning fireplace insert IL 80/60 5

cast ironsteelcontemporary

Product Overview
Large wood insert with panoramic glass and reversible door. Two-speed ventilation, adjustable air, and Clean Glass technology for always visible flames.

Highlights
The pleasure of fire becomes the protagonist: the large combustion chamber and panoramic glass offer a captivating view of the flame. Practicality with the reversible door with double glass and two-speed ventilation system with manual or automatic management. PP emissions remain low, with a value of 12 mg/m³.

Main Features

• Steel cladding
• Cast iron brazier and Aluker® firebox
• Tertiary air system
• Removable ash pan
• Ventilation kit for non-ductable forced ventilation

Optional

• Ash vacuum cleaner for stove cleaning

Fuel Type

• Wood

Technical Data
Energy efficiency class | A+ (G → A++)
Rated output | 9.0 kW
Efficiency | 86 %
Heatable volume | 150 - 260 m³
Wood consumption | * kg/h
Ø Flue outlet | 150 mm
Product weight: 147 kg
Product measures (LxPxH): Please refer to product sheet

Characteristics / Technical Specifications

• Large combustion chamber with panoramic glass
• Reversible door with double glass
• Two-speed ventilation (manual or automatic)
• Clean Glass technology
• Low PP emissions: 12 mg/m³
• Steel cladding
• Cast iron brazier and Aluker® firebox
• Tertiary air system
• Removable ash pan
• Ventilation kit (non-ductable)
• Optional ash vacuum cleaner
• Energy efficiency class: A+ (G → A++)
• Rated output: 9.0 kW
• Efficiency: 86%
• Heatable volume: 150 - 260 m³
• Wood consumption: * kg/h
• Flue outlet diameter: 150 mm
• Product weight: 147 kg
