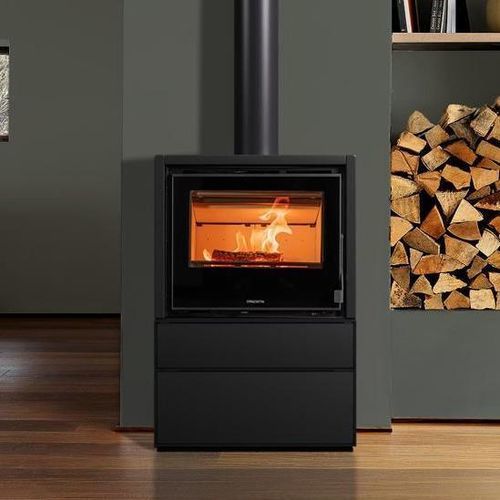

Wood heating stove VOXEL COMB. B

6 kWfree-standingcontemporary

Description
Modular freestanding wood-burning fireplace with three selectable internal inserts and 5-star environmental certification. Choice of three inserts differing in size and power: IL 60/50, IL 70/56 and IL 80/60. Modules in majolica and steel, available with or without shelves and push-pull drawers. Configurable horizontally and vertically. Optional heating integration with Multifuoco® System.

Available colours

• TERRACOTTA
• LAVA RED
• TAUPE
• MATT BLACK
• WHITE LIMEWASH

Main features

• Refractory firebox and steel brazier
• Radiant majolica cladding
• Tertiary air system
• Non-ductable forced ventilation kit

Optional

• Multifuoco® System
• Dedicated ash vacuum for stove cleaning (Vacuum)

Technical data
Model: IL 60/50 5 STELLE
Energy efficiency class: A+ (G → A++)
Nominal heat output: 6.0 kW
Efficiency: 88 %
Heatable volume: 100 - 175 m³
Wood consumption: 1.60 kg/h
Flue outlet diameter: 150 mm
Product weight: 62 kg
Product dimensions (W×D×H): See product sheet

Technical characteristics / specifications

• Available models: IL 60/50, IL 70/56, IL 80/60
• Environmental certification: 5 Stars
• Nominal heat output: 6.0 kW (for IL 60/50 5 STELLE)
• Efficiency: 88 %
• Heatable volume: 100 - 175 m³
• Wood consumption: 1.60 kg/h
• Flue outlet diameter: 150 mm
• Weight: 62 kg
• Module materials: Majolica and steel
• Equipment options: Multifuoco® System, ash vacuum, ventilation kit
