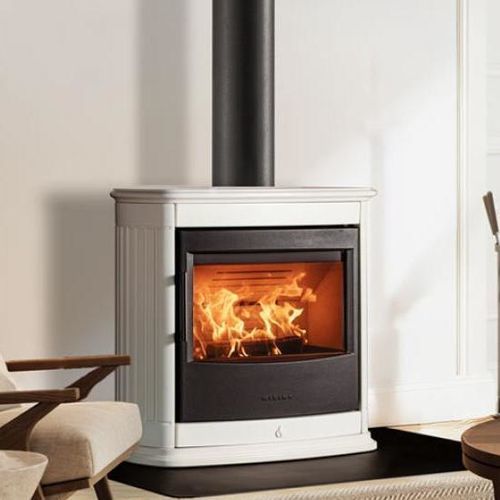

Wood heating stove E908 C

5 kW...10 kWwall-mountedwith legs

Description
The E908 C is a stove with a large firebox that provides an extended view of the flame. Classic design with a decorative frame around the fire. Clad in radiant majolica and elevated on steel feet. Equipped with the WIKING® Automaticᵀᴹ combustion system, which automatically regulates air intake based on combustion-chamber temperature without manual adjustment or electrical power. Environmental certification: 5 stars.

Available colours

• Copper brown
• Matte black
• Lime white
• Hemp
• Brick
• Bordeaux

Main features

• Placement: Corner (can be installed in a corner)
• Placement: Wall (wall-mountable)
• Combustion system: WIKING® Automaticᵀᴹ
• Heating: Natural convection
• Tertiary air: tertiary-air system
• Firebox: Skamolex firebox
• Cladding: Radiant Majolica
• Removable ash drawer (ash box)
• Glass cleaning with internal air wash
• Top flue outlet
• Wide firebox for an extended flame view

Optional

• External air kit (kit for taking combustion air from outside)

Technical data (table)
Energy Efficiency Class: A+ (G → A++)
Nominal thermal power: 7.3 kW
Efficiency: 80 %
Heatable volume: 120 - 210 m³
Wood consumption: 1.5 kg/h
Flue outlet diameter: 150 mm
Product weight: 133 kg
Dimensions (W x D x H): 762 x 365 x 940 mm

Technical characteristics / specifications

• Model: E908 C
• Fuel: wood
• Nominal thermal power: 7.3 kW
• Efficiency: 80 %
• Heatable volume: 120-210 m³
• Wood consumption: 1.5 kg/h
• Flue outlet diameter: 150 mm
• Weight: 133 kg
• Dimensions (W x D x H): 762 x 365 x 940 mm
• Skamolex firebox
• WIKING® Automaticᵀᴹ system
• Radiant majolica cladding
• Removable ash drawer
• Air wash for glass cleaning
• Top flue outlet
