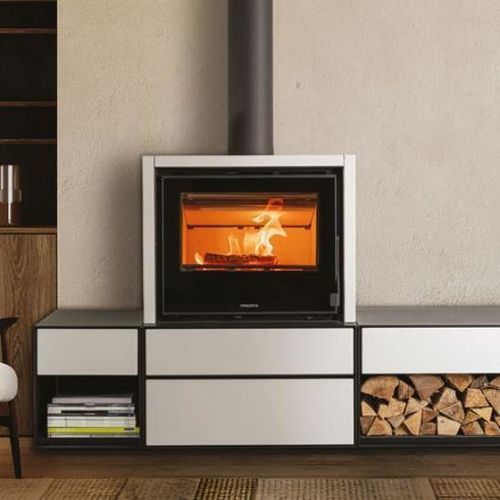

Wood heating stove VOXEL COMB. A

6 kWfree-standingcontemporary

Overview The VOXEL comb. A is a freestanding modular wood-burning fireplace available with three interchangeable inserts (IL 60/50, IL 70/56, IL 80/60) certified with a 5-star environmental rating. Modules combine majolica cladding and steel and can be configured horizontally or vertically; versions with shelves and push-pull drawers are available. Optional Multifuoco® System for enhanced heating distribution.

Available colors

• Lime White
• Taupe
• Matte Black
• Terracotta
• Lava Red

Technical data (IL 60/50 5 STELLE)

• Energy efficiency class: A+ (G → A++)
• Nominal thermal power: 6.0 kW
• Efficiency: 88 %
• Heatable volume: 100 - 175 m³
• Wood consumption: 1.60 kg/h
• Flue outlet diameter: 150 mm
• Product weight: 62 kg
• Product dimensions (W×D×H): see product sheet

Main features

• Refractory firebox and steel brazier
• Radiant majolica cladding
• Tertiary air system
• Non-ductable forced ventilation kit

Optional

• Multifuoco® System
• Dedicated ash vacuum

Video Voxel - Module Composition (official product video).

Model / technical specifications

• Model: IL 60/50 5 STELLE
• Energy class: A+ (G → A++)
• Nominal thermal power: 6.0 kW
• Efficiency: 88 %
• Heatable volume: 100 - 175 m³
• Wood consumption: 1.60 kg/h
• Flue outlet diameter: 150 mm
• Weight: 62 kg
