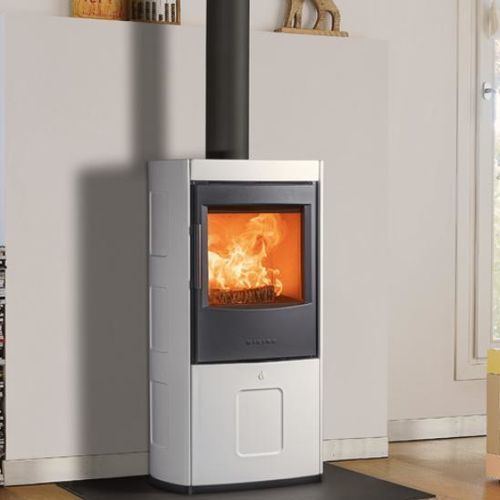

Wood heating stove ROLLE

3 kw – 5 kwwall-mountedcorner

Description
ROLLE is a classic-design wood-burning stove with majolica cladding featuring a square texture, certified 5 stars. It delivers a nominal thermal power of 4.5 kW and has compact dimensions, making it suitable for heating small spaces and integrating into various rooms. A dome version is available on request to emphasize the traditional look. The WIKING® Automaticᵀᴹ combustion system automatically regulates air intake without user intervention or electrical supply.

Available colors

• Brown Earth
• Hemp
• Myrtle Green
• White
• Lava Red

Main features

• Corner: suitable for corner installation
• Wiking Automatic: WIKING® Automaticᵀᴹ combustion system
• Wall: wall-mountable
• Natural heating: natural convection heating
• Tertiary air: system with tertiary air supply
• Skamolex Firebox: Skamolex firebox
• Radiant Majolica: radiant majolica cladding
• Ash box: removable ash drawer
• Air wash: internal air flow for glass cleaning
• Top flue outlet: top flue outlet

Optional

• Dome Version: dome (on request)
• External air kit: kit for taking combustion air from outside

Technical specifications

• Energy Efficiency Class: A+ (G → A++)
• Nominal Thermal Power: 4.5 kW
• Efficiency: 83 %
• Heatable Volume: 100 - 175 m³
• Wood Consumption: 1.85 kg/h
• Flue Outlet Diameter: 150 mm
• Product Weight: 86 kg
• Product Dimensions (W×D×H): 557 x 369 x 1050 mm
• Certification: 5 stars
