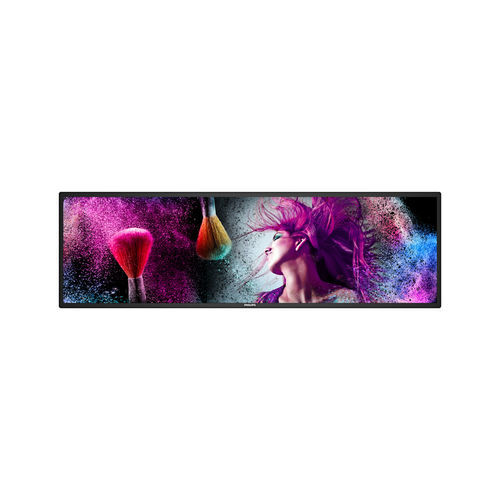

Wall-mounted display panel 37BDL3050S/00

indoorsmartdigital

Widen the view. Widen your opportunities with the Philips S-Line. With its unique 32:9 design and 1920 x 540 resolution, high-brightness output and versatile linking, the new stretched digital signage display shows more in less space. Picture/Display Diagonal screen size (inch) - 37 Panel resolution - 1920 x 540 Optimum resolution - 1920 x 540 @ 60 Hz Brightness - 700 Response time (typical) - 8 Aspect ratio - 32:9 Viewing angle (horizontal) - 178 Viewing angle (vertical) - 178 Pixel pitch - 0.47 x 0.47 mm Display colours - Normally Black Picture enhancement - 3/2 - 2/2 motion pull down 3D Combfilter De-interlacer Progressive scan 3D MA deinterlacing Smart Picture Colour Temperature Adjustment Colour Enhancement Noise Reduction Panel technology - AG Contrast ratio (typical) - 4000:1 Operating system - Android 8.0 Placement - Landscape (24/7) Portrait (24/7) Supported Display Resolution Computer formats - 640 x 480, 60, 67, 75 Hz 720 x 400, 70 Hz 800 x 600, 60 Hz 832 x 624, 75 Hz 1024 x 768, 60 Hz 1152 x 870, 75 Hz 1280 x 720, 60 Hz 1280 x 1024, 60 Hz 1440 x 900, 60 Hz 1680 x 1050, 60 Hz 1920 x 1080, 60 Hz Video formats - 480i, 60 Hz 480p, 60 Hz 576p, 50 Hz 576i, 50 Hz 720p, 50, 60 Hz 1080i, 50, 60 Hz 1080p, 50, 60 Hz Connectivity Video input - HDMI 2.0 (x 1) USB 2.0 (x 1) VGA (Analogue D-Sub) (x 1) Audio input - 3.5 mm jack Video output - HDMI 2.0 (x 1) Audio output - 3.5 mm jack External control - IR (in/out) 3.5 mm jack RJ45 RS232C (in/out) 2.5 mm jack Convenience Signal loop through - RS232 HDMI IR Loop through Network controllable - LAN (RJ45) Operating conditions Temperature range (operation) - 0~ 40 Temperature range (storage) - -20 ~ 60 Altitude - 0 ~ 3000 m
