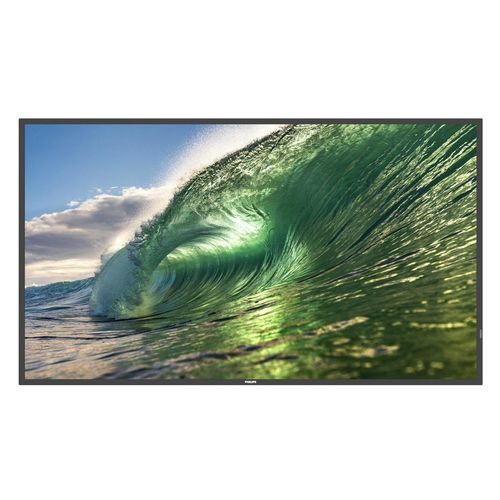

Wall-mounted display panel 43BDL3650QE/00

indoorcommercialsmart

Overview
4K Ultra HD commercial digital display 43BDL3650QE/00 from the Signage 3000 Series (QE-Line). Designed for continuous professional use with integrated Android 10 player and energy-saving features.

Series
Signage 3000 Series / QE-Line

Size
43" (diagonal)

Connectivity

• Video inputs: HDMI 2.0, DVI-I
• USB: USB 2.0, USB 3.0; micro SD
• Optional Wi‑Fi: CRD22 Wi‑Fi dongle
• Audio I/O: 3.5 mm jack (in/out)
• External control: RJ45, RS232C (2.5 mm), IR (3.5 mm)

Convenience

• Orientation: Landscape, Portrait
• Remote control: Lockable
• Energy saving: Smart Power
• Keyboard control: Lockable, Hidden
• Signal loop-through: RS232, IR
• Network control: RS232, RJ45
• Tiled matrix support: Up to 15 x 15

Accessories

• Included: IR sensor cable, RS232 daisy-chain cable, Philips logo, AC power cord, AC switch cover, cable clip, quick start guide, RS232 cable, USB cover

Internal Player

• Memory: 16 GB storage, 3 GB DDR RAM
• CPU: Quad-Core Cortex A55
• GPU: G52 MC1

Dimensions

• Set (W x H x D): 973.0 mm x 561.2 mm x 63.5 mm
• Wall mount: 200 mm x 200 mm (M6)
• Bezel width: 13.9 mm
• Weight: 11.29 kg

Sound

• Built-in speakers: 2 x 10 W RMS

Power

• Power (Typical / Max): 53 W / 102 W
• Standby power: <0.5 W
• Mains: 100–240 V~, 50/60 Hz
• Energy label class: E

Multimedia Applications

• USB video playback: H.263, H.264, H.265, MPEG1/2, MPEG4, VP8, VP9
• USB picture: JPEG, BMP, PNG
• USB audio: AAC, HEAAC, MPEG

Operating conditions

• Operating temperature: 0 ~ 40 °C
• Storage temperature: -20 ~ 60 °C
• Operating humidity: 20 ~ 80% RH
• Storage humidity: 5 ~ 95% RH
• Altitude: 0 ~ 3000 m
• MTBF: 30,000 hours

Miscellaneous

• Regulatory approvals: CE, CB, BSMI, FCC Class A, VCCI, J-Moss, ETL, RoHS
• OS languages (OSD): English, French, German, Italian, Polish, Russian, Spanish, Turkish, Simplified Chinese, Traditional Chinese, Arabic, Japanese
• Warranty: 3 years

Picture/Display

• Optimum resolution: 3840 x 2160 @ 60 Hz (4K UHD)
• Panel type: VA; Panel resolution: 3840 x 2160
• Brightness: 350 cd/m²; Contrast ratio (typical): 4000:1
• Dynamic contrast ratio: 500,000:1; Response time (typical): 8 ms
• Display colours: 1.06 Billion; Pixel pitch: 0.2854 x 0.2854 mm
• Viewing angle: 178° / 178°; Aspect ratio: 16:9
• Operating system (internal player): Android 10

Technical specifications

• Model family / series: Signage 3000 Series (QE-Line)
• Panel resolution: 3840 x 2160 (4K UHD)
• Brightness: 350 cd/m²
• Panel type: VA
• Built-in audio: 2 x 10 W RMS
• Power (typical / max): 53 W (typical), 102 W (max)
• Standby power: <0.5 W
• Operating system (internal player): Android 10
• Internal memory / RAM: 16 GB / 3 GB DDR
• CPU / GPU: Quad-Core Cortex A55 / G52 MC1
• Connectivity highlights: HDMI 2.0, DVI-I, USB 2.0/3.0, RJ45, RS232C, IR, micro SD
• Mounting: 200 x 200 mm (M6)
• Dimensions (W x H x D): 973.0 mm x 561.2 mm x 63.5 mm
• Weight: 11.29 kg
• Operating temp/humidity: 0 ~ 40 °C; 20 ~ 80% RH
• Warranty: 3 years
