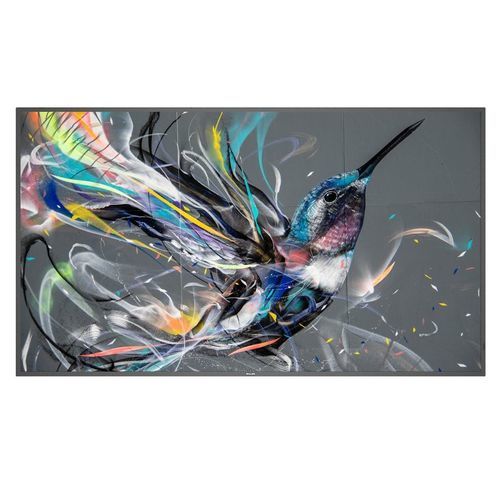

Wall-mounted display panel 65BDL3511Q/02

industrialcommercialsmart

Overview
Inform and enthral with the Philips Q-Line professional Ultra HD signage display. Ready for fast deployment in retail, corporate and industrial environments, this 65-inch 4K screen delivers wide viewing angles, reliable 24/7 operation features and network control for centralized management.

Key features

• Model: 65BDL3511Q/02 — Signage 3000 Series (Q-Line)
• Display: 65-inch (64.5") diagonal, 3840 x 2160 @ 60 Hz, IPS panel, 400 cd/m²
• Image: 1.07 billion colours, 1200:1 typical contrast, 8 ms response, anti-glare haze 25%
• Audio: 2 x 10 W RMS built-in speakers
• Professional functions: D-Image preset, tiled matrix up to 10 x 15, Smart Insert, Smart Power

Connectivity

• Video inputs: DVI-I, HDMI 2.0, USB 2.0
• Control & network: RS232C (2.5 mm), RJ45
• Remote/IR: IR 3.5 mm jack, IR loop-through
• Audio I/O: 3.5 mm in/out

Installation & control
Landscape or portrait mounting, VESA 400 x 400 mm (M8). Network-controllable via RJ45 or RS232. Remote-control signal and keyboard control are lockable. Start-up options include switch-on delay and boot-on-source; Philips logo can be enabled/disabled. Ease installation with Smart Insert and RS232 daisy-chain support.

Multimedia & formats
USB playback supports images (BMP, JPEG, PNG), video (H.264, JPEG, MPEG, WMV3) and audio (AAC, WMA, MPEG, HEAAC). Supported display resolutions include common video and computer formats up to 3840 x 2160 @ 60 Hz.

Dimensions & weight
Set Width: 1462.3 mm · Set Height: 837.3 mm · Set Depth: 68.9 / 89.9 mm · Bezel width: 14.9 mm · Product weight: 27.80 kg. Wall mount: VESA 400 x 400 mm, M8.

Power & energy
Mains power 100–240 V~, 50/60 Hz. Typical power consumption 165 W; max 220 W; standby < 0.5 W. Energy Label Class: G. Power-saving features: Smart Power.

Operating conditions
Operating temperature 0–40 °C; storage -20–60 °C; operating humidity 20–80% RH; storage humidity 5–95% RH; altitude 0–3000 m. MTBF: 50,000 hours.

Certifications & warranty
Regulatory approvals: CE, FCC Class A, CB, BSMI, VCCI, CU, ETL, EMF, PSB. On-screen display languages include Arabic, English, French, German, Italian, Japanese, Polish, Russian, Spanish, Simplified Chinese, Turkish and Traditional Chinese. Warranty: 3 years.

Technical specifications

• Product code: 65BDL3511Q/02
• Series: Signage 3000 Series (Q-Line)
• Panel: IPS; Pixel pitch 0.372 x 0.372 mm
• Resolution: 3840 x 2160 @ 60 Hz; Brightness: 400 cd/m²
• Contrast ratio (typical): 1200:1; Dynamic contrast: 500,000:1
• Viewing angle: 178° / 178°; Response time: 8 ms
• Speakers: 2 x 10 W RMS
• Connectivity: DVI-I, HDMI 2.0, USB 2.0, RJ45, RS232C, IR, 3.5 mm audio in/out
• Power: 165 W (typ.) / 220 W (max); Standby <0.5 W
• Dimensions (W x H x D): 1462.3 x 837.3 x 68.9 / 89.9 mm; Weight: 27.80 kg
• Mounting: VESA 400 x 400 mm, M8
• Included accessories: IR sensor cable, Philips logo, AC power cord, AC switch cover, quick start guide, remote + AAA batteries, RS232 daisy-chain cable, USB cover + screw, wire clamper
