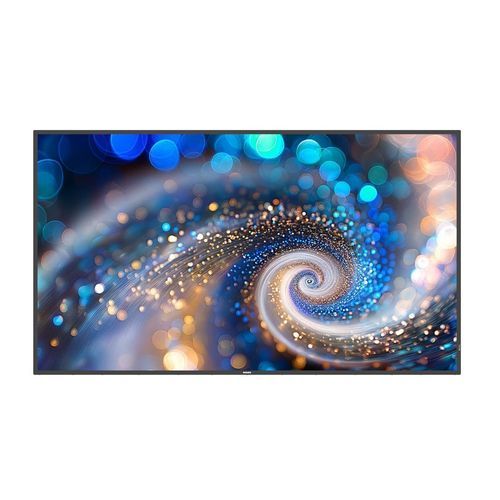

Wall-mounted display panel 65BDL2050A/00

indoorcommercialsmart

Overview
The Philips Signage 2000 Series 65BDL2050A/00 is a 65" UHD commercial display for 16/7 operation, powered by Android 14. It offers a 3840×2160 resolution with 400 cd/m² brightness and an ADS panel for wide viewing angles.

Connectivity
Video input: HDMI 2.0, USB-C (4.5W PD)
USB: USB 3.0
Audio output: 3.5 mm jack
External control: RJ45, IR in (3.5 mm)

Convenience

• Energy-saving: ECO mode
• Mounting: Landscape or Portrait
• Network control: RJ45
• Tiled matrix support: Up to 3 × 3
• Remote control: Lockable
• Front controls: Lockable, Hidden
• Signal loop through: IR loop-through

Accessories

• Optional: CRD22 Wi‑Fi & Bluetooth module
• Optional: CRD73 Philips ScreenShare license
• Included: Power cable 1.8 m
• Included: Remote control
• Included: External IR cable
• Included: AC switch cover
• Included: Logo badge
• Included: USB cover and screw

Dimensions
Set (W×H×D): 1462.3 mm × 837.3 mm × 68.9/89.9 mm
VESA: 400 × 400 mm, M8
Weight: 28.5 kg
Bezel width: 14.9 mm

Internal player
CPU: Quad core Cortex-A73
Memory: 3 GB RAM
Storage: 16 GB
GPU: ARM Mali G52 MC1

Power
Mains: 100–240 V~, 50/60 Hz
Typical power consumption: 134 W
Standby: ≤0.5 W
Energy label class: G

Multimedia Applications
USB audio playback: AAC, HEAAC, MPEG
USB image playback: BMP, JPEG, PNG
USB video playback: H.264, H.263, H.265, MPEG, MPEG4, VP8, VP9, AVI, MP4, WEBM

Miscellaneous
Certifications: CE, CB, RoHS
OSD languages: Simplified Chinese, Traditional Chinese, English, French, German, Italian, Polish, Russian, Spanish, Turkish, Japanese, Arabic, Danish, Swedish, Finnish, Norwegian, Dutch
Warranty: 3 years

Operating conditions
Operating temperature: 5–40 °C
Storage temperature: -20–60 °C
Humidity (operating): 10–90% RH
Altitude: 0–3000 m
MTBF: 30,000 hours

Picture / Display
Panel resolution: 3840 × 2160 (UHD)
Pixel pitch: 0.372 × 0.372 mm
Colors: 1.07 billion
Brightness: 400 cd/m²
Optimal resolution: 3840 × 2160 @ 60 Hz
Viewing angle: 178° / 178° (H/V)
Aspect ratio: 16:9
Contrast ratio (typical): 1200:1
Dynamic contrast ratio: 500,000:1
Response time: 8 ms
Panel technology: ADS
Operating system: Android 14

Supported Display Resolution
Video formats: 2160p 50/60Hz; 1080p 50/60Hz; 1080i 50/60Hz; 720p 50/60Hz
Computer formats: 3840 × 2160 (60,50 Hz); 1920 × 1080 (60 Hz); 1600 × 1200 (60 Hz); 1280 × 1024 (60 Hz); 1280 × 800 (60 Hz); 1280 × 720 (60 Hz); 1152 × 864 (75 Hz); 1024 × 768 (60/70/75 Hz); others as supported

Technical specifications

• Model: 65BDL2050A (A‑Line, Signage 2000 Series)
• Display: 65", 3840 × 2160 UHD, 400 cd/m², ADS panel
• OS: Android 14
• Internal player: Quad core Cortex-A73, 3 GB RAM, 16 GB storage
• Connectivity: HDMI 2.0, USB-C (4.5W PD), USB 3.0, 3.5 mm audio out, RJ45, IR in (3.5 mm)
• Power: 100–240 V~, Typical 134 W, Standby ≤0.5 W
• Dimensions: 1462.3 × 837.3 × 68.9/89.9 mm, VESA 400 × 400 mm
• Weight: 28.5 kg
• Operating range: 5–40 °C, 10–90% RH, 0–3000 m
• MTBF: 30,000 hours
• Warranty: 3 years
